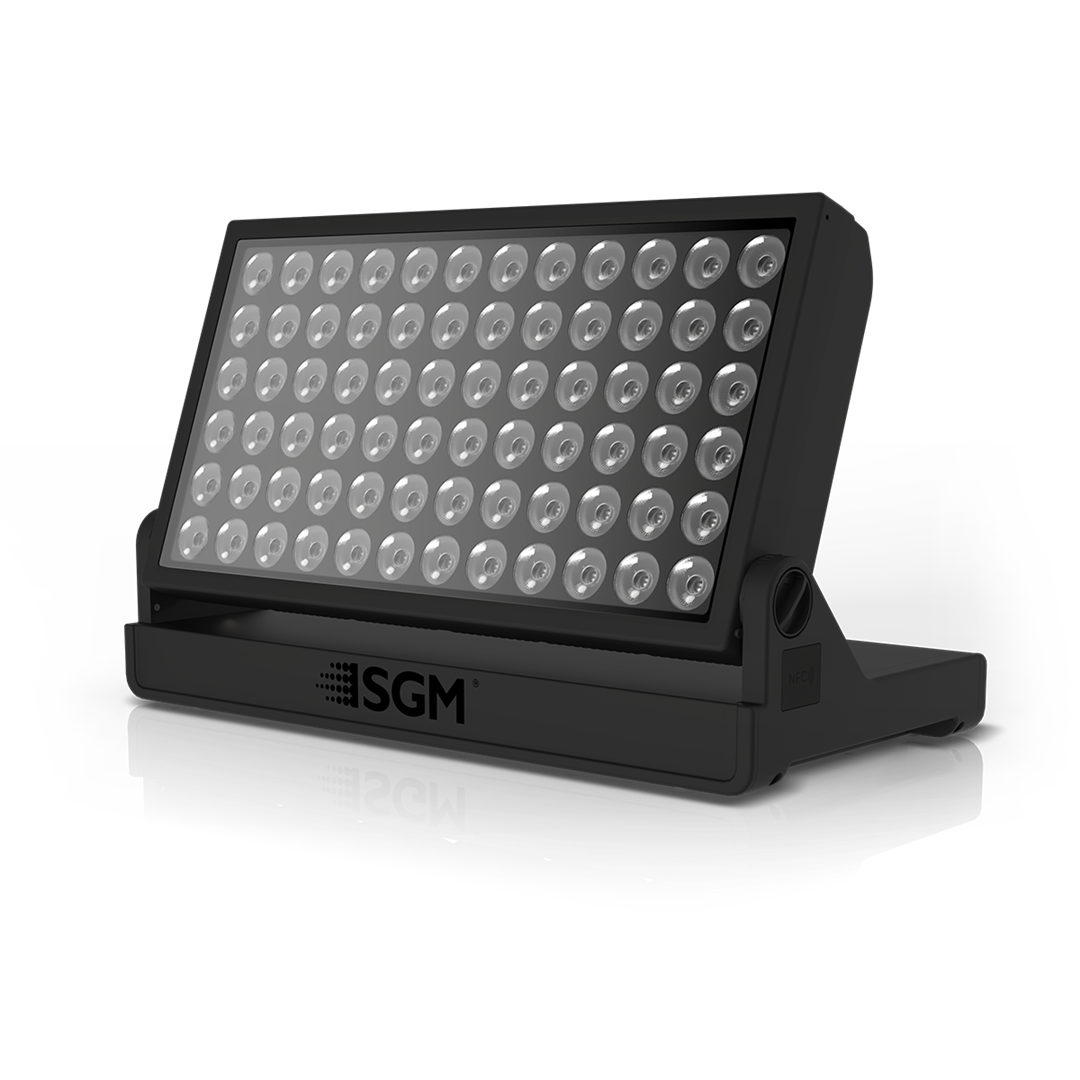

PALCO 12 Wash Light

Overview
The SGM PALCO-12 Wash is a large-format, foldable, IP65-rated LED wash light built around 72 high-output 40 W RGBL LEDs with SGM ColorBoost technology. It delivers 59,936 lm of saturated, color-mixed output with a tunable white range of 2000 K to 10000 K. The fixture is designed for both indoor and outdoor use on stages, events and temporary architectural installations.

Best for
Rental, touring, event and architectural users who need a high-output, weatherproof RGBL wash or wall-wash fixture that folds down for transport.

Highlights

• 72 x 40 W RGBL LEDs with ColorBoost technology
• Foldable design for compact transport and storage
• IP65 and IK06 rated for outdoor use, operating from -4°F to 122°F (-20°C to 50°C)
• DMX/RDM, Art-Net and sACN control, with optional LumenRadio CRMX wireless
• NFC setup via the SGM iOS/Android app
• Accepts SGM Universal Frame, 8-way barndoor and diffusion filter accessories

Key Specs

• Part Number: SGMPALCO12
• SGM Item Number: 80300502
• Light Source: 72 x 40 W RGBL LEDs
• Output: 59,936 lm (all LEDs on)
• Beam/Field Angle: 13° beam / 27° field
• CCT Range: 2000 K - 10000 K
• Power Input: 100-240 VAC, 50/60 Hz
• Power Consumption: 1600 W max
• Control: DMX/RDM via 5-pin XLR; Art-Net/sACN via Ethernet; optional LumenRadio CRMX
• Rating: IP65, IK06
• Dimensions: 25.3 x 12.8 x 6.5 in (642 x 326 x 165 mm)
• Weight: 52.9 lb (24 kg)
