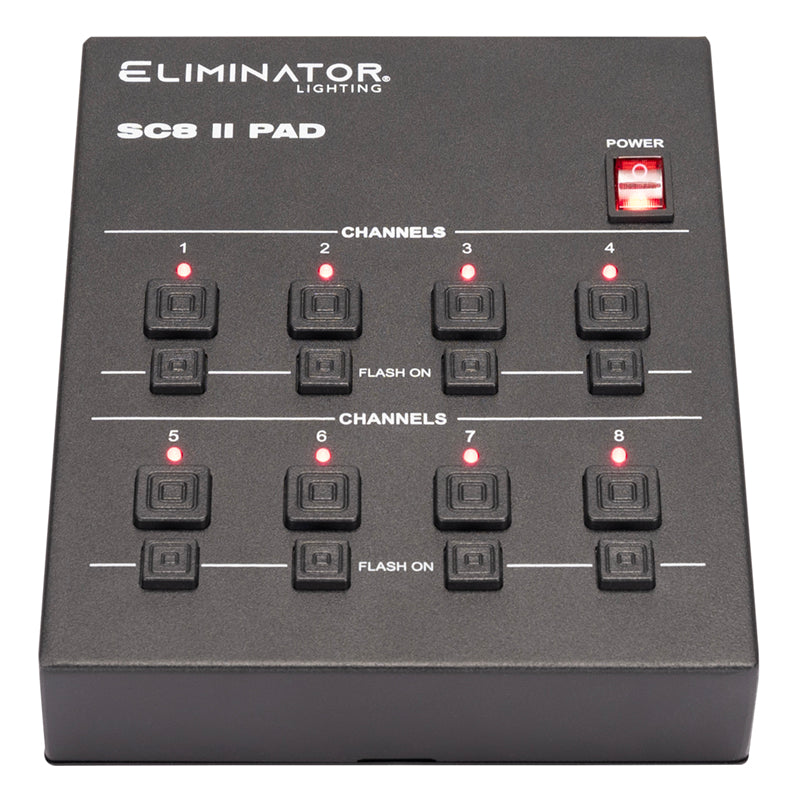

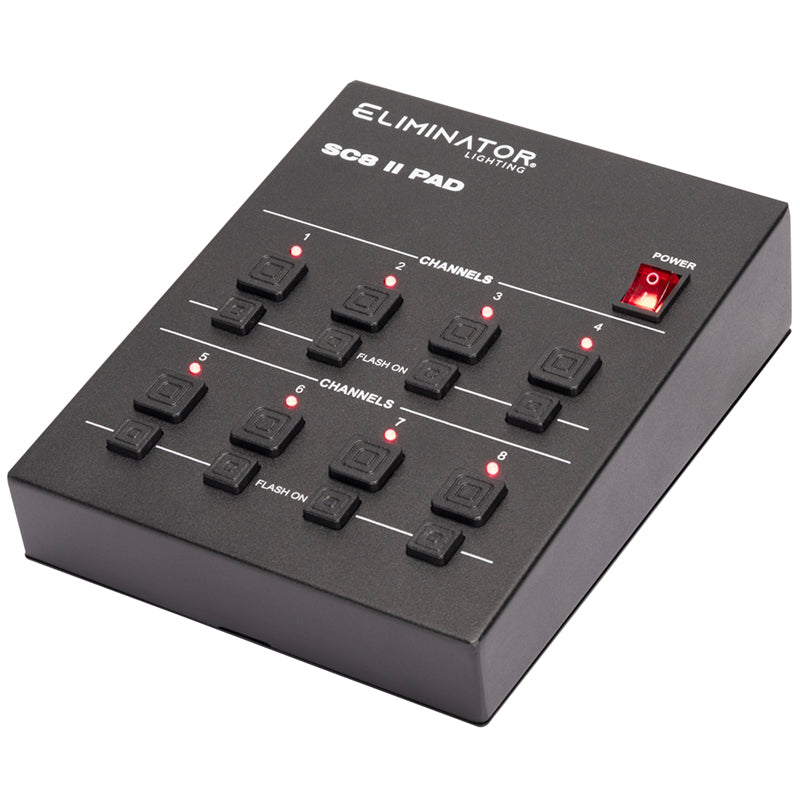

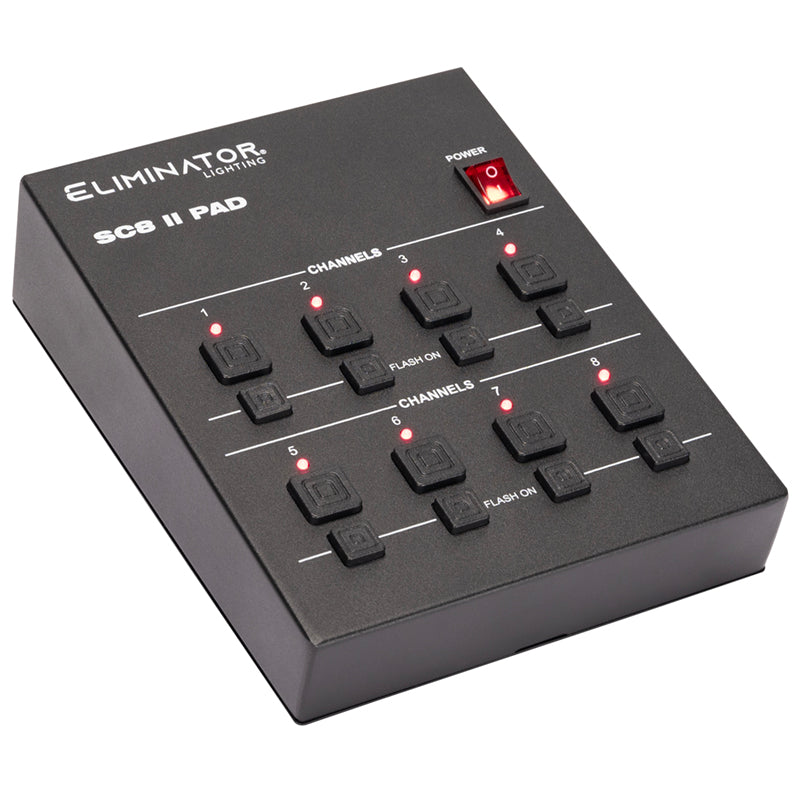

SC8 II PAD SYSTEM - Control system

Overview
The Eliminator Lighting SC8 II Pad System is an 8-channel on/off controller paired with a relay pack, linked by a single DMX cable to cut down on power runs to the lights. Each channel has its own on/off toggle and flash switch.

Best for
Mobile DJ rigs, small stages and venues switching non-DMX lights and effects.

Highlights

• 8 channel on/off toggle switches plus 8 flash switches
• Relay pack with 8 Edison outlets, 15A total
• 2 USB outputs on the controller for charging mobile devices
• Master power switch and rubber feet for desktop use
• Relay pack has circuit breaker reset, M10 mounting thread and safety loop

Key Specs

• Package includes: SC8 II Pad controller, SC8 II Pad RP relay pack, 25 ft 3-pin DMX cable, 4 ft IEC power cord
• Controller input: AC 100-240V, 50/60Hz
• Controller data: 3-pin XLR out
• Relay pack: 8 Edison outlets, 15A total (1800W at 120V)
• Relay pack data: 3-pin XLR In/Out
• Controller dimensions: 7.75" x 5.9" x 2.25" (197 x 150 x 57.9 mm)
• Relay pack dimensions: 13.5" x 5" x 2" (343 x 128 x 53.2 mm)
• Weight: 5 lb (2.37 kg)
• Certifications: CE, cETLus, FCC, IP20
