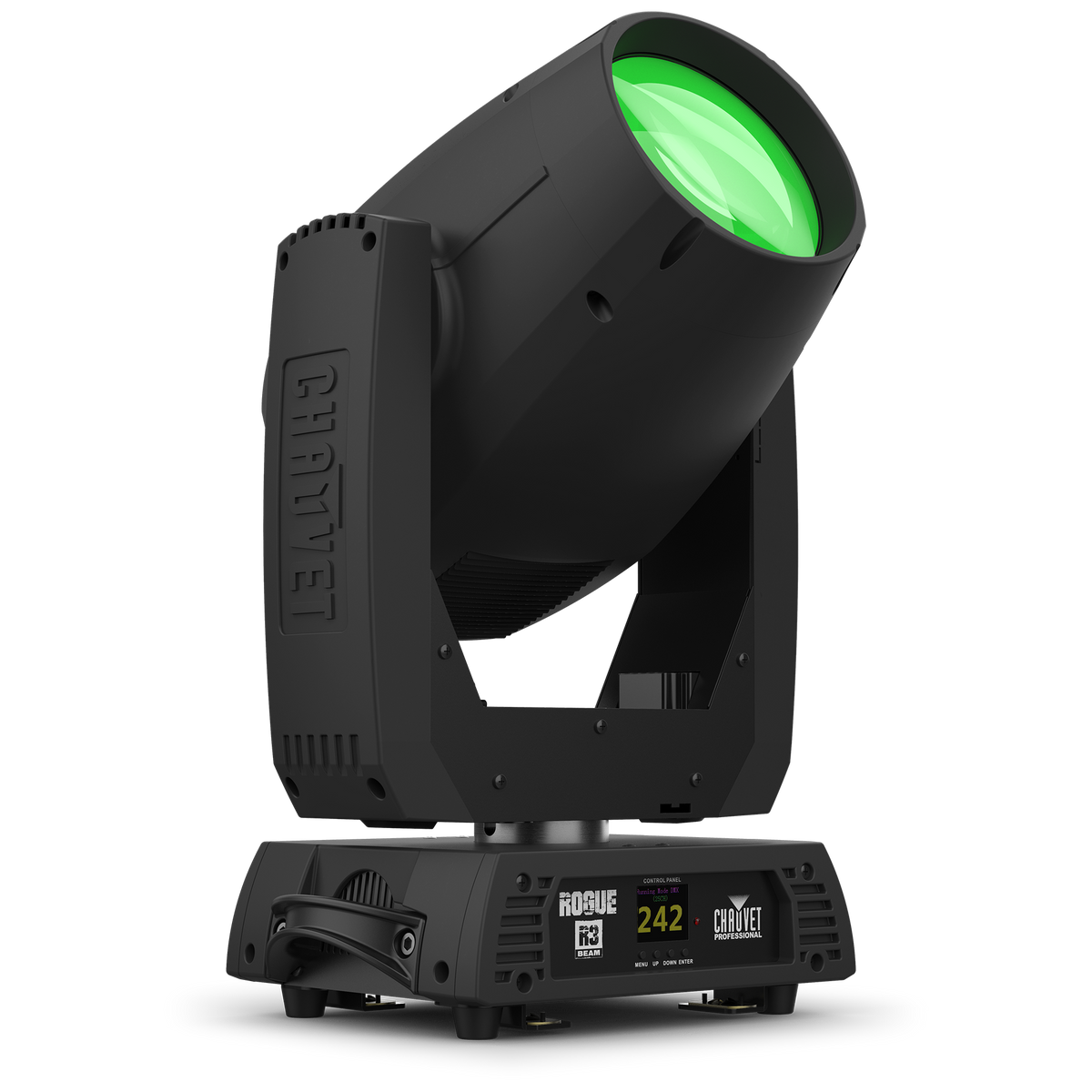

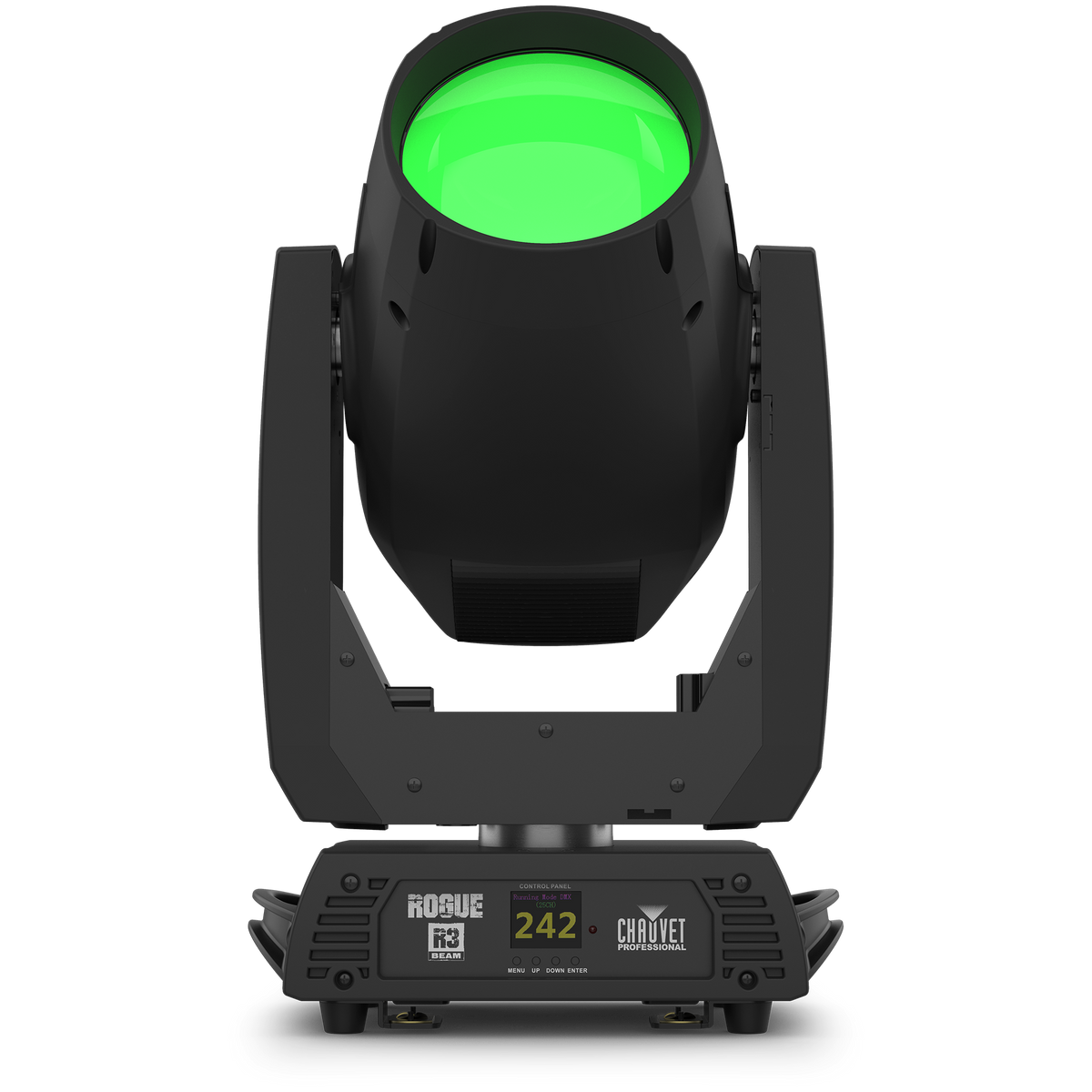

Rogue R3 Beam

Overview
The Rogue R3 Beam is a high-output discharge beam fixture built around a 300 W Ushio NSL lamp, throwing a razor-thin 0.8° beam at 30,878 lumens. Dual 8- and 24-facet overlapping prisms, a 14-color scrolling wheel and 17 static scrolling gobos add heavy aerial effects.

Best for
Large indoor concerts and touring productions that need extreme-throw aerial beam effects.

Highlights

• 300 W Ushio NSL discharge lamp at 8,000 K
• Razor-thin 0.8° beam angle
• 14-color scrolling wheel and 17 static scrolling gobos
• Dual 8-facet and 24-facet overlapping prisms
• 540°/270° motorized pan/tilt

Key Specs

• Light source: 300 W Ushio NSL lamp, 8,000 K, 8,000-hour life
• Output: 30,878 lumens
• Beam angle: 0.8°
• IP rating: IP20 (dry location)
• DMX channels: 16 or 19
• Power: 418 W @ 120 V; weight 34.4 lb (15.6 kg)
