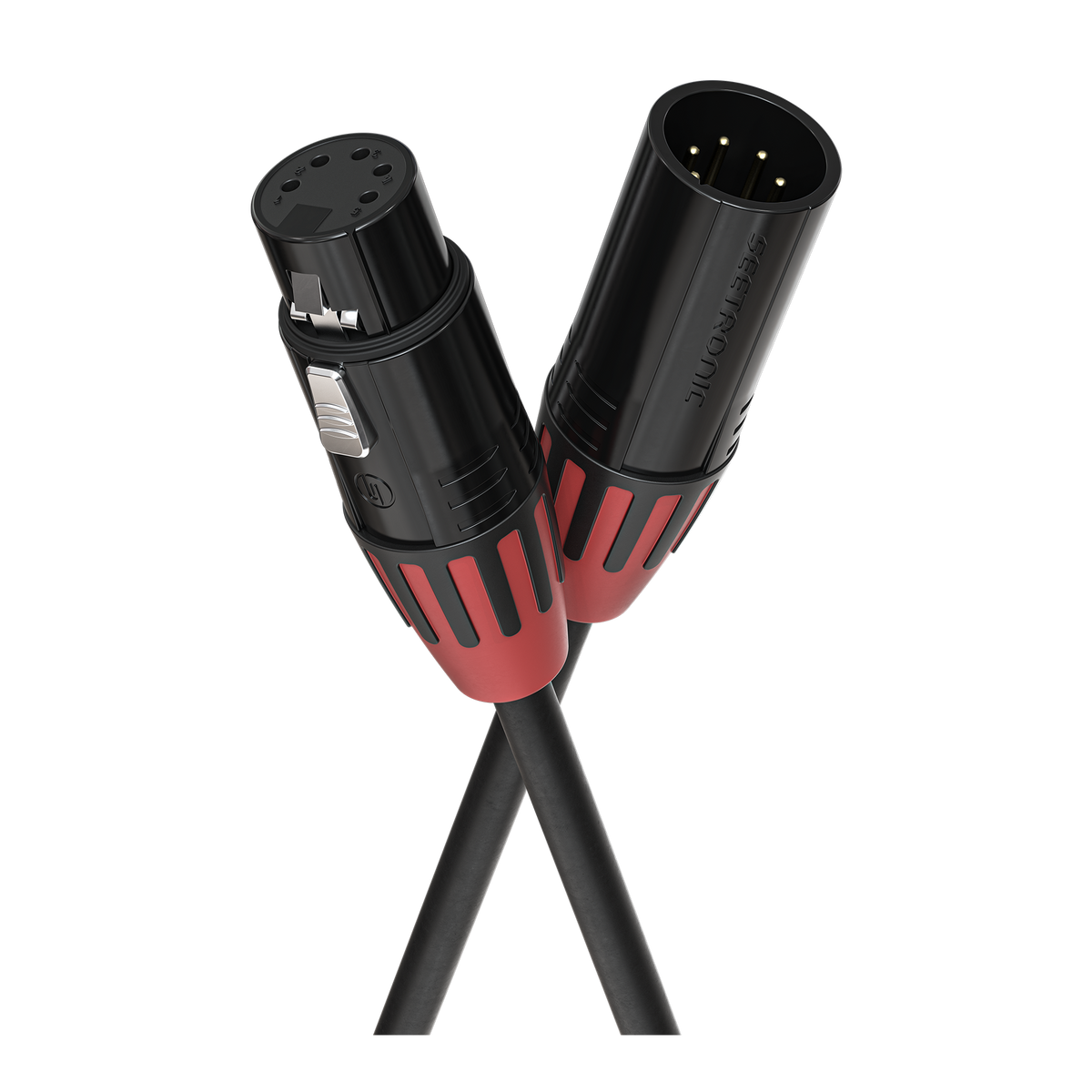

RIGLINK 5-Pin DMX - 1.5FT
Regular price
$18.00 USD
Sale price
Regular price
Overview
The 1.5 ft (0.46 m) length of Chauvet Professional's RIGLINK 5-Pin DMX line, a color-coded (red), rugged touring cable. It carries a double-shielded 5-pin DMX signal for stable data transmission in touring and permanent installs.
Compatible with
DMX-512 lighting control links using standard 5-pin connectors, in dry (non-IP) locations.
Highlights
- Color-coded jacket for quick length identification on site
- Production-grade Seetronic connectors
- UL-certified construction for touring and permanent installs
Key Specs
- Connectors: Seetronic SCM55-BG and SCMF5-BG (5-pin)
- Cable gauge: 2 × 0.22 mm² (24 AWG), tinned OFC 20/0.12BC conductor
- Shielding: braided plus aluminum foil double shield, 110 Ω impedance
- IP rating: IP20
- Temperature range: -20°C to 70°C
- Length: 1.5 ft (0.46 m)
