PIXIE DRIVER 8000 V2

Overview
The ADJ Pixie Driver 8000 V2 is an 8-output power and data driver for ADJ Pixie Strip series fixtures. It supports manual RGB control with dimming and strobe, internal programs and full pixel mapping of up to 8,160 pixels via Art-Net or sACN.

Best for
Larger Pixie Strip and Pixie Curve 60 installations on tours, stages and permanent installs.

Highlights

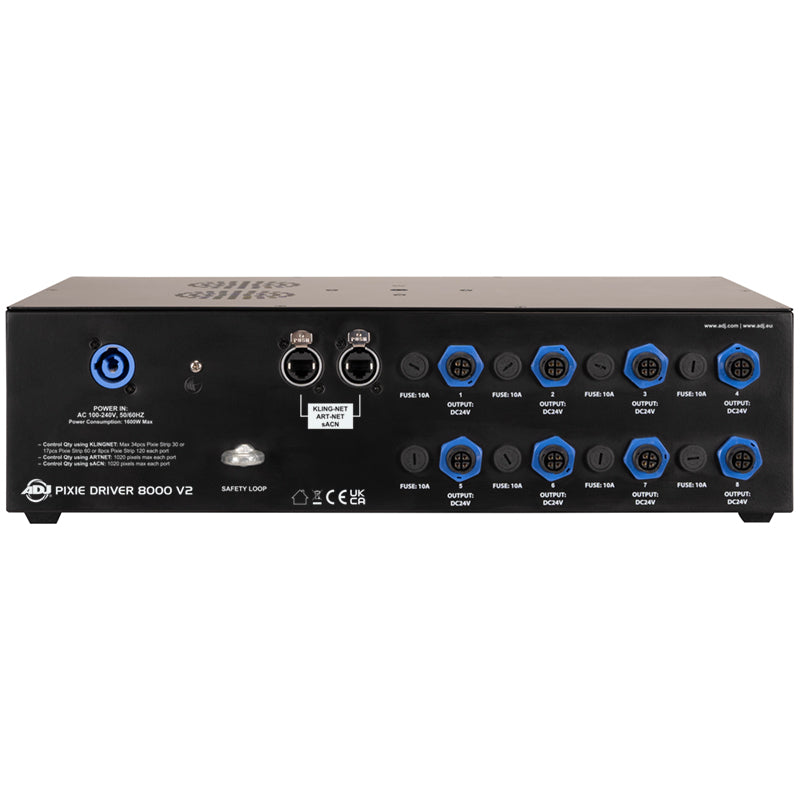

• Eight 4-pin 24V DC power/data outputs
• Full pixel mapping via Art-Net or sACN, up to 1,020 pixels per port
• Manual RGB, dimming, strobe and internal programs for standalone use

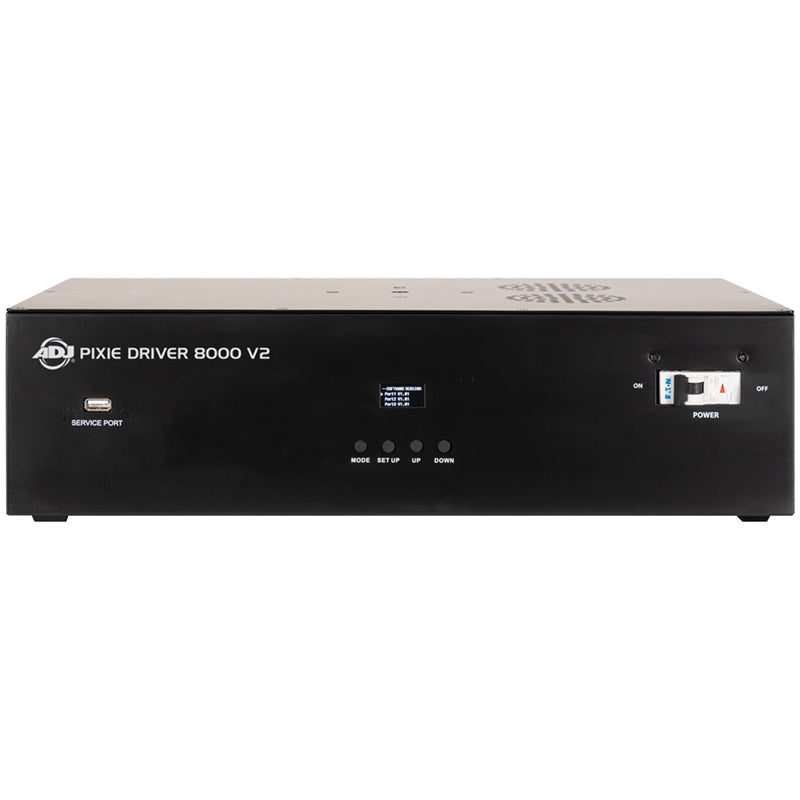

• OLED display with 4-button menu and USB firmware updates
• Rack-mountable chassis
• Includes 10 ft Pixie Strip link cable, SIP20MPC power input cable and two 19" rack ears

Key Specs

• Outputs: 8 x 4-pin DC 24V power/data
• Pixel capacity: 8,160 total (1,020 per port)
• Per port: 34 x Pixie Strip 30, 17 x Pixie Strip 60 / Pixie Curve 60 or 8 x Pixie Strip 120
• Protocols: Art-Net, sACN
• Network: 2 x locking RJ45 (in/out)
• Input voltage: 100–240V AC, 50/60Hz
• Power consumption: 1,600W max
• Dimensions: 11.8" x 18.9" x 4.7" (300.3 x 480 x 120 mm)
• Weight: 13.4 lb (6.1 kg)
