PIXIE DRIVER 2000 V3

Overview
The ADJ Pixie Driver 2000 V3 is a power and data driver for ADJ Pixie Strip series fixtures. It offers manual RGB control, internal programs and full pixel mapping of up to 2,040 pixels via Art-Net or sACN.

Best for
Running Pixie Strip 30, 60, 120 and Pixie Curve 60 fixtures in stage, touring and installation rigs.

Highlights

• Two 4-pin 24V DC power/data outputs for Pixie Strip fixtures
• Full pixel mapping via Art-Net or sACN, up to 1,020 pixels per port
• Manual RGB mode and internal programs for standalone use

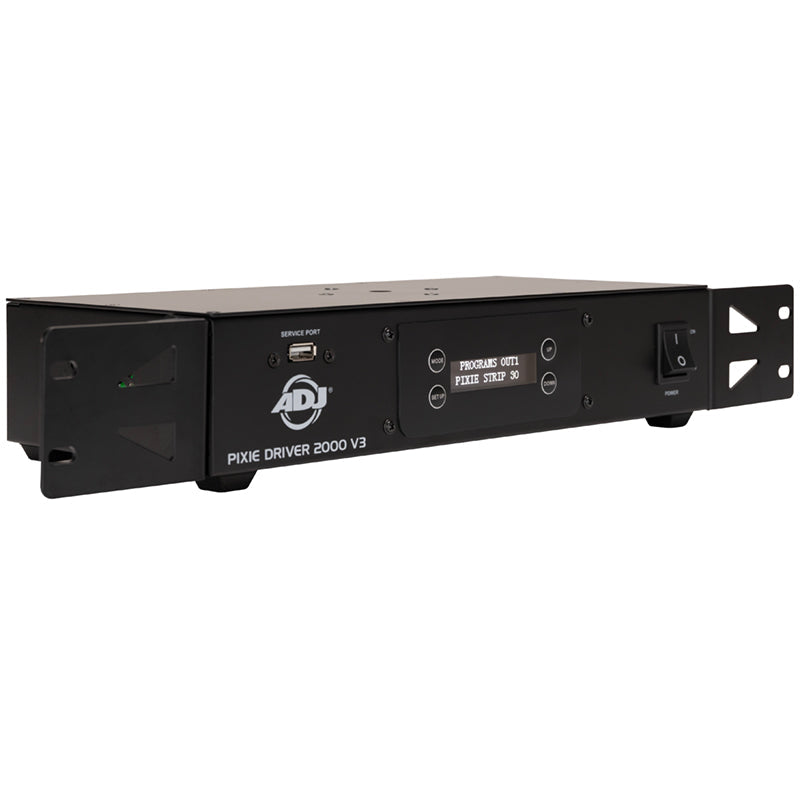

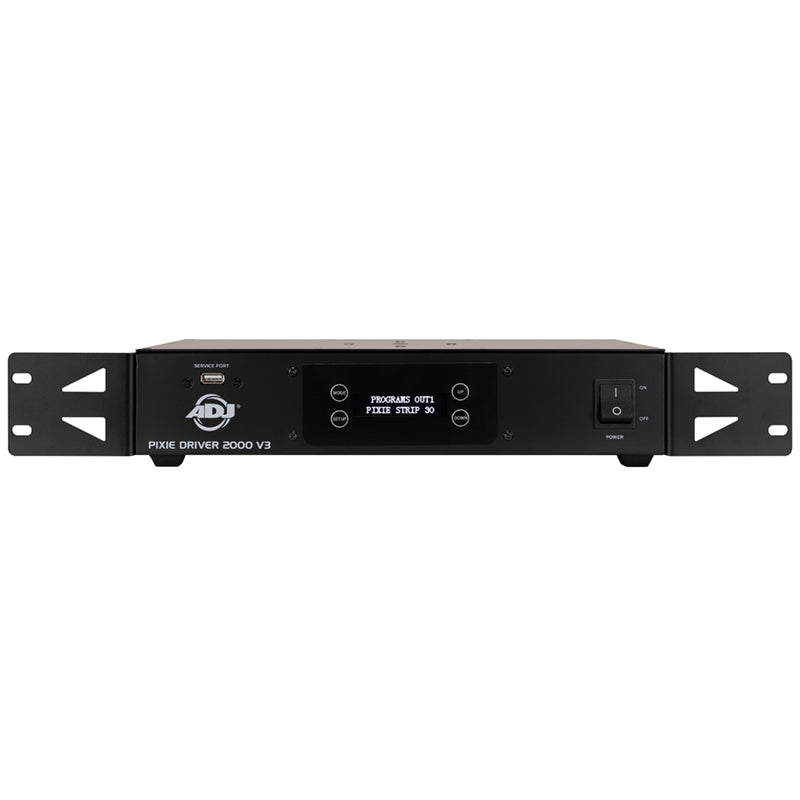

• OLED display with 4-button menu, RDM compatible, USB firmware updates
• Includes twist-lock power cable, 19" rack ears and 4-pin data cable

Key Specs

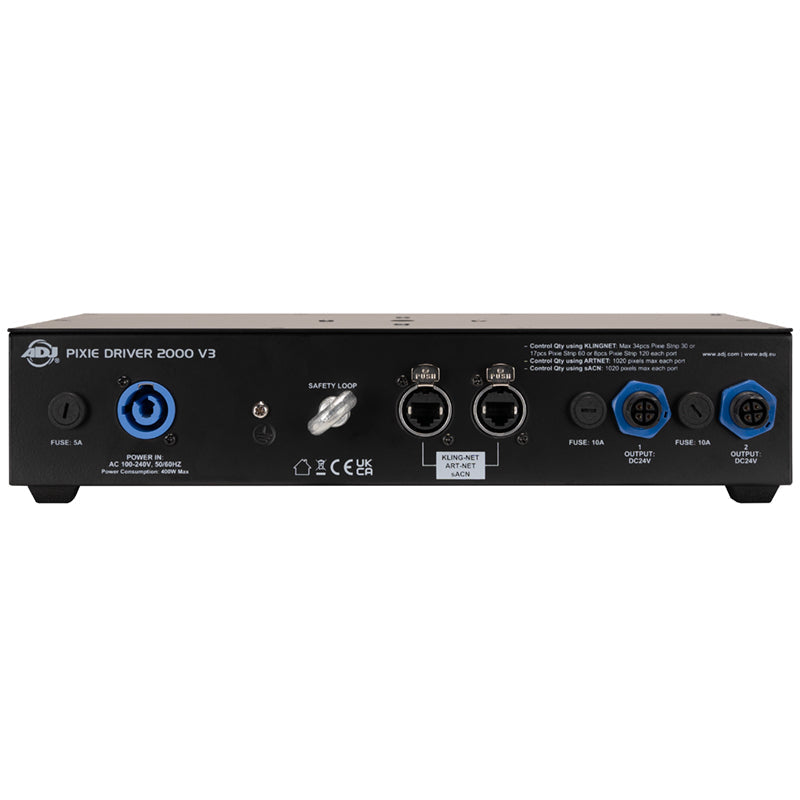

• Outputs: 2 x 4-pin DC 24V power/data
• Pixel capacity: 2,040 total (1,020 per port)
• Per port: 34 x Pixie Strip 30, 17 x Pixie Strip 60 / Pixie Curve 60 or 8 x Pixie Strip 120
• Protocols: Art-Net, sACN, RDM
• Network: Locking RJ45 in/out
• Input voltage: 100–240V AC, 50/60Hz
• Power consumption: 400W max
• Dimensions: 18.9" x 7.1" x 2.9" (480 x 180.8 x 74 mm)
• Weight: 5.6 lb (2.5 kg)
