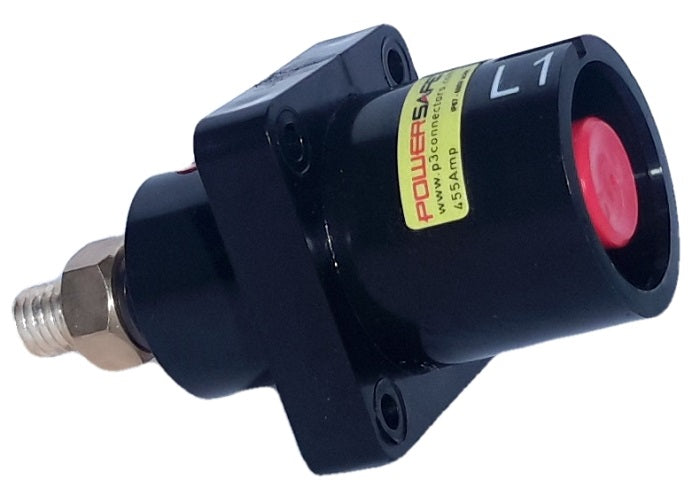

ULPS003 - Phase 3 Powersafe 455A Single Pole Panel Mount Source Connector, Black

Overview
Phase 3 Powersafe single-pole panel-mount source connector in black, rated 455A and UL listed for the USA and Canada. Powerlock compatible, with mechanically keyed, locked mating and secondary locking, so it cannot be mis-mated or pulled apart under load. Made in Great Britain.

Best for
Distribution panels, company switches and generator outputs on single-pole Powerlock systems. US colour convention: Black = L1 (phase A).

Key Specs

• Part number: ULPS003
• Type: Source (male), panel mount
• Colour: Black (L1 (phase A))
• Termination: M12 x 30mm (1.18") threaded stud; M12 nut and spring washer included
• Flange with 4 fixing holes
• Rating: 455A at 600V AC (UL)
• Short circuit rating: 35.5kA; surge current 75kA
• Powerlock compatible (VEAM PowerLock and other Powerlock-standard connectors)
• Release key required to disconnect (Phase 3 SCP0095)
• IP67 mated (waterproof and dustproof); IP2X finger-proof contacts
• Reduced insertion force, improved impact resistance, rubber hand grip
• UL94-V0 flame retardant, high-temperature materials; operating temperature -30°C to +125°C
• More than 500 mating cycles
• UL listed for USA and Canada; made in Great Britain
