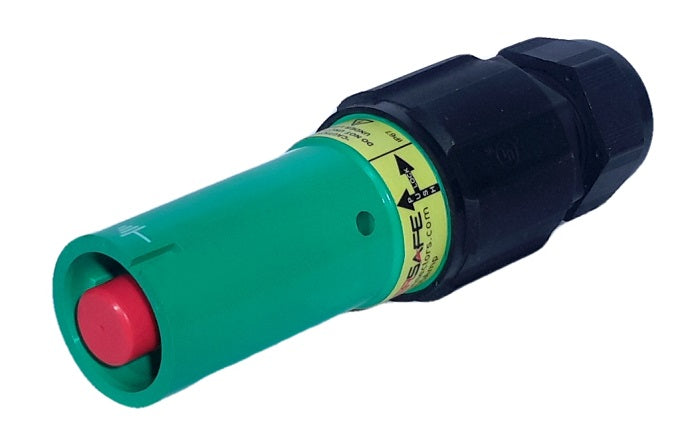

ULLS001 - Phase 3 Powersafe 455A Single Pole Source Connector, Green, 4/0 Ready

Overview
Phase 3 Powersafe single-pole in-line cable source connector in green, rated 455A and UL listed for the USA and Canada. Powerlock compatible, with mechanically keyed, locked mating and secondary locking, so it cannot be mis-mated or pulled apart under load. Made in Great Britain.

Best for
Feeder cable runs on single-pole Powerlock systems. US colour convention: Green = Ground (equipment grounding).

Key Specs

• Part number: ULLS001
• Type: Source (male), line/cable
• Colour: Green (Ground (equipment grounding))
• Cable gland: M40A, fits cable OD 0.63-0.86" (16-22mm)
• 4/0 ready; reduction sleeve kits available for 3/0, 2/0, 1/0, #2 and #4 conductors
• Rating: 455A at 600V AC (UL)
• Short circuit rating: 35.5kA; surge current 75kA
• Powerlock compatible (VEAM PowerLock and other Powerlock-standard connectors)
• Release key required to disconnect (Phase 3 SCP0095)
• IP67 mated (waterproof and dustproof); IP2X finger-proof contacts
• Reduced insertion force, improved impact resistance, rubber hand grip
• UL94-V0 flame retardant, high-temperature materials; operating temperature -30°C to +125°C
• More than 500 mating cycles
• UL listed for USA and Canada; made in Great Britain
