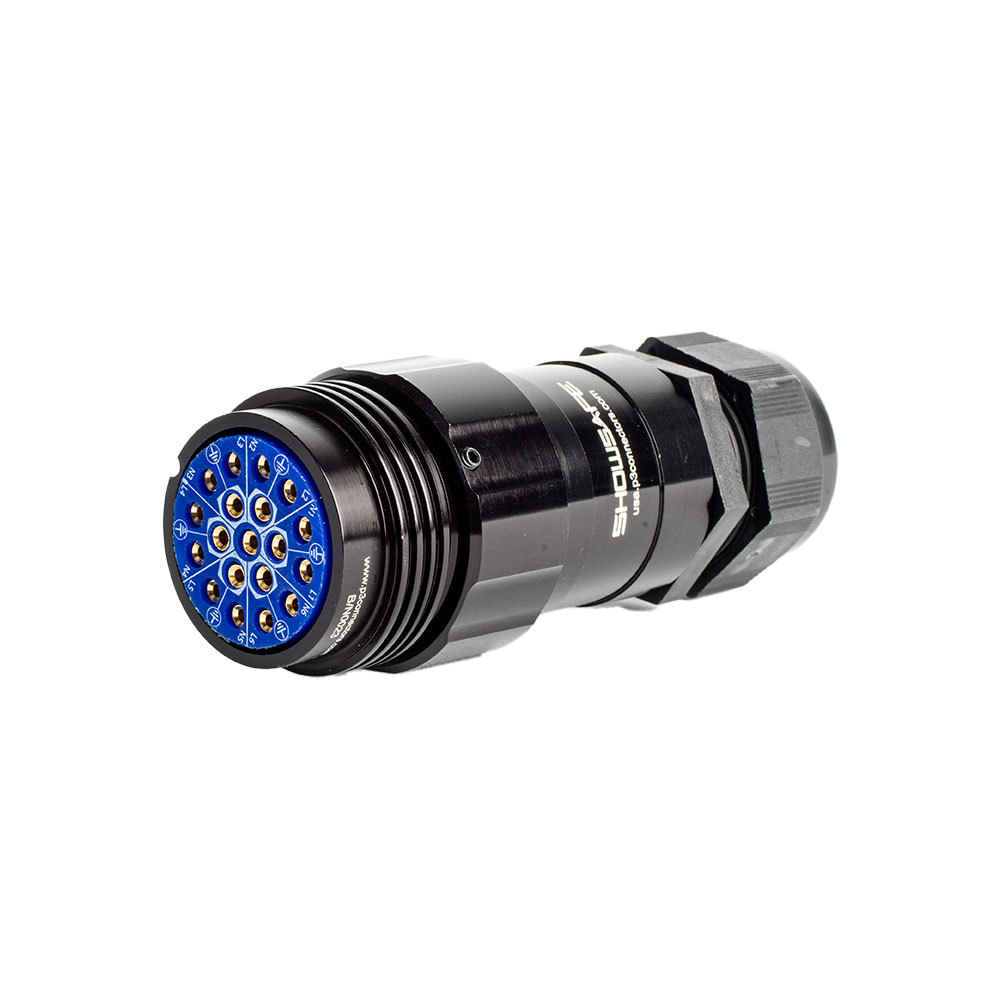

P190142 - Phase 3 19-Pin Female Line/Cable Connector, Crimp Termination, 16-28mm Cable Clamp (M40-A), UL

Overview
Phase 3 Showsafe 19-pin Socapex-compatible multi-pin in-line cable connector, female (socket) with crimp contacts and a 16-28mm Cable Clamp (M40-A) strain relief. UL listed and made in Great Britain.

Best for
Building and repairing Socapex (SL419-style) 19-pin multicable runs, breakouts and break-ins for 6-circuit lighting distribution.

Key Specs

• Part number: P190142
• Phase 3 part code: P-19.0-L-F-C-M40-A-UL
• Compatible with Socapex SL419-series 19-pin connectors
• Contacts: 19 x 25A, gold-plated multi-point machined contacts
• Gender: Female (socket)
• Mounting: Line/Cable
• Termination: Crimp (12-14 AWG / 1.5-2.5mm² wire)
• Cable clamp: 16-28mm Cable Clamp (M40-A)
• Voltage rating: 600V AC / 700V DC max (UL)
• IP67 when mated
• Operating temperature: -55°C to +125°C
• High-impact machined shells with wear-resistant anodised finish
• UL listed (file E483242), RoHS compliant
• Made in Great Britain
