Novastar VX1000 - Video processor/controller

Overview
The NovaStar VX1000 is an all-in-one controller that combines video processing and LED screen control in one unit. It drives up to 6.5 million pixels over 10 Ethernet ports and processes 4K x 1K @ 60Hz video.

Best for
Medium and high-end rental, stage control systems and fine-pitch LED displays.

Highlights

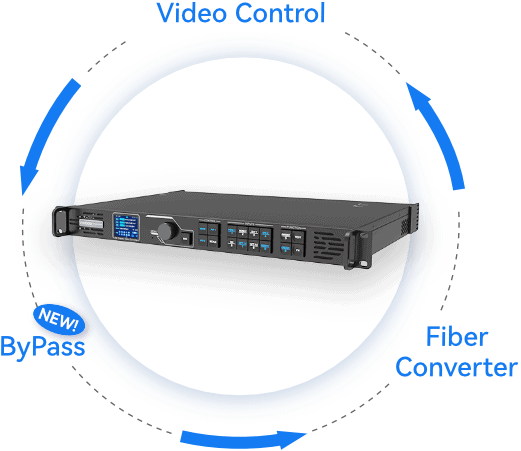

• Video controller, fiber converter and bypass working modes
• Stepless output scaling with low latency (20 lines in bypass mode)
• 3 adjustable layers and up to 10 user presets
• Pixel-level calibration and 3D support
• Configured with NovaStar NovaLCT and V-Can software
• Cascade up to 4 units

Key Specs

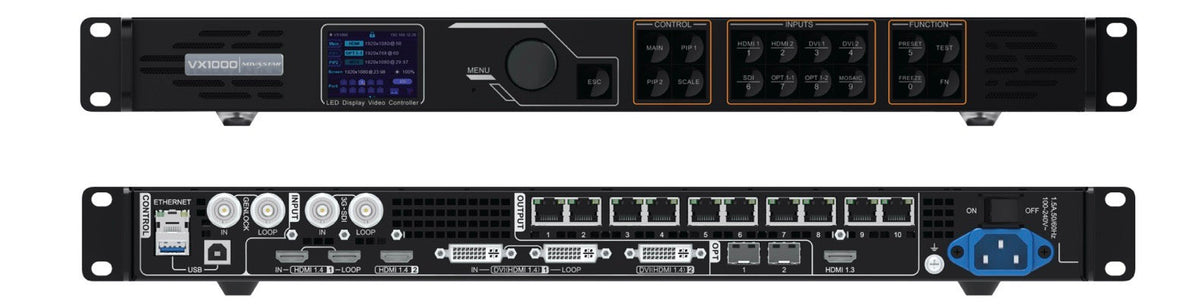

• Inputs: 2x HDMI 1.4 (one with loop), 2x DVI (one with loop), 1x 3G-SDI (with loop), 1x 10G optical fiber
• Outputs: 10x Gigabit Ethernet, 2x fiber, 1x HDMI 1.3
• Pixel capacity: Up to 6.5 million pixels
• Max output size: 10,240 px wide x 8,192 px high
• Power input: 100-240V~, 1.5A, 50/60Hz
• Dimensions (L x W x H): 19.04 x 13.83 x 1.98 in (483.6 x 351.2 x 50.1 mm)
• Net weight: 8.82 lb (4 kg)
