NET 8 - DMX over Ethernet node

Overview

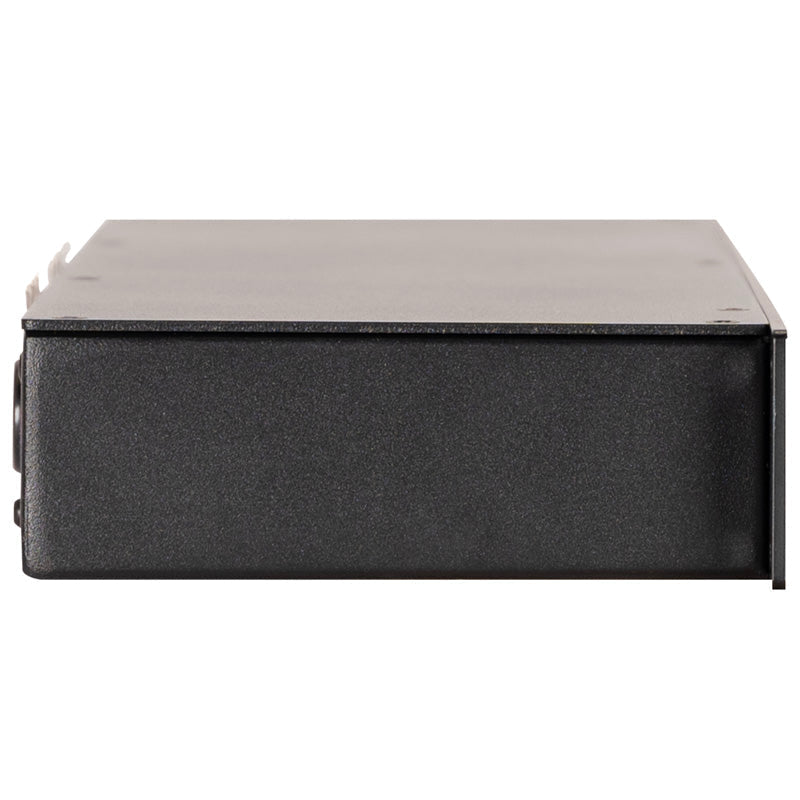

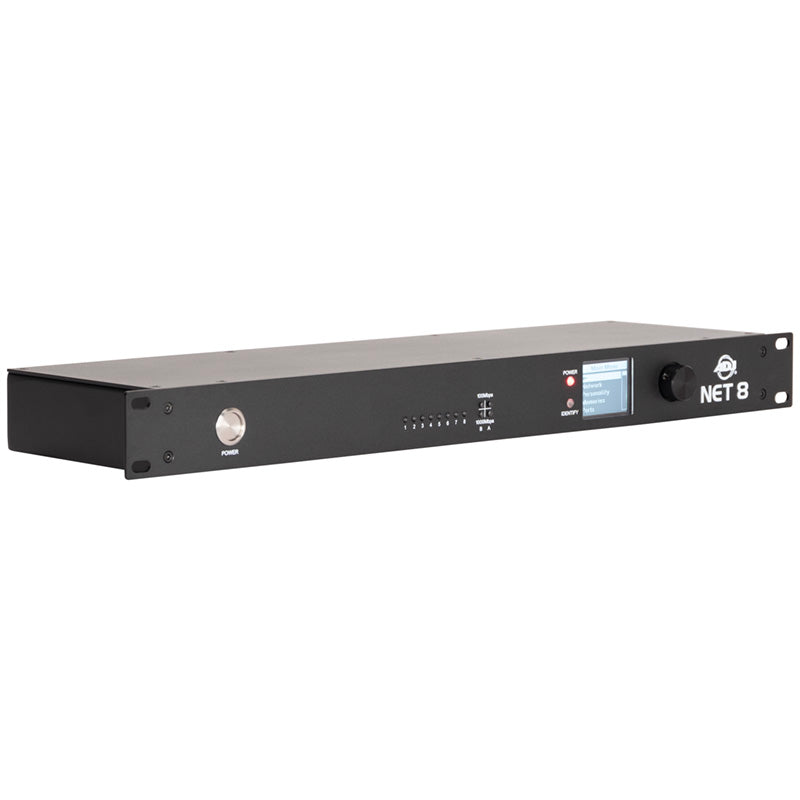

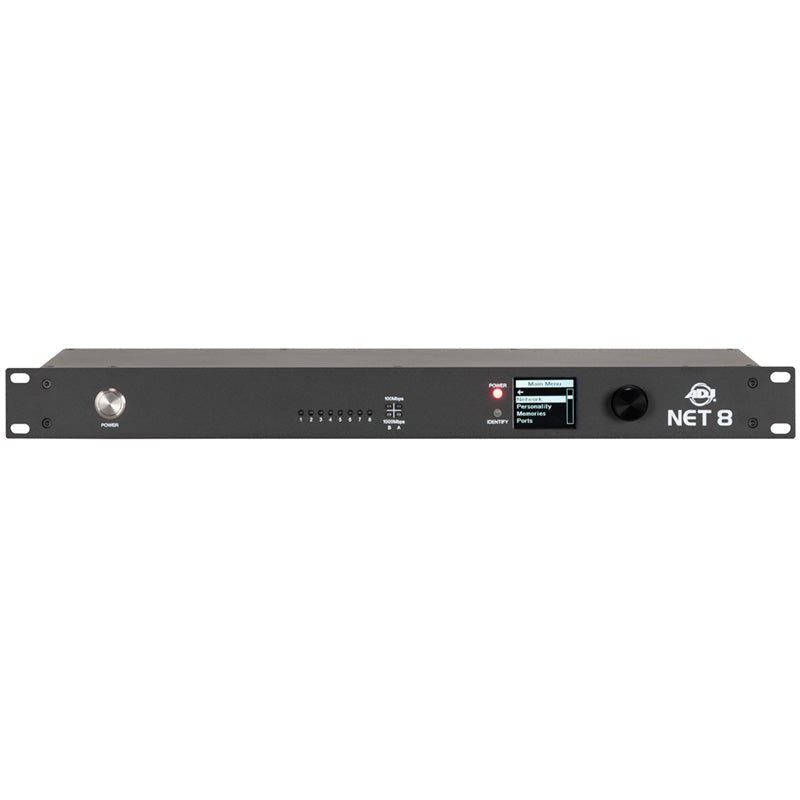

The NET 8 is an 8-port DMX over Ethernet node in a 19" rack-mount chassis, supporting DMX-512, RDM, Art-Net and sACN. It runs on line voltage or PoE and expands a compatible controller from one DMX universe to eight.

Best for
Rack-based distribution of multiple DMX universes in venues, touring rigs and installations.

Highlights

• 8 DMX ports on 5-pin XLR
• Art-Net, sACN, DMX-512 and RDM support
• Line voltage or PoE (802.3af) power
• DHCP or static IP configuration with 1.7" LCD display
• 19" rack-mount format

Key Specs

• Ports: 8x 5-pin XLR DMX
• Network: 2x RJ45
• Protocols: DMX-512, RDM, Art-Net, sACN
• Power: AC 100-240V, 50/60Hz or PoE 802.3af
• Power consumption: 5.7W @ 120V
• IP rating: IP20
• Dimensions: 19" x 5.7" x 1.7" (483 x 144 x 44 mm)
• Weight: 4.76 lb (2.16 kg)
• Package includes: IP65-rated locking power cable
