NET 4 - 4-port DMX over Ethernet node

Overview
The NET 4 is a 4-port DMX over Ethernet node supporting Art-Net, sACN, DMX512 and RDM. It runs on line voltage or PoE and is configured from its LCD menu or a web browser.

Best for
Distributing DMX universes over a network in stages, venues and installations.

Highlights

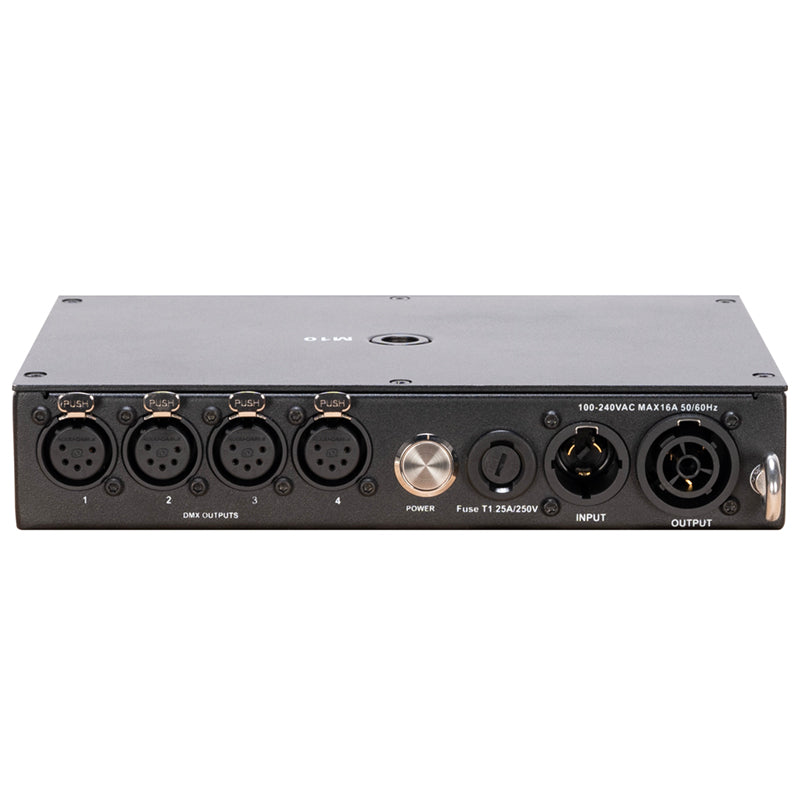

• 4 DMX ports on 5-pin XLR
• Art-Net, sACN, DMX512 and RDM support
• AC or PoE (802.3af) power

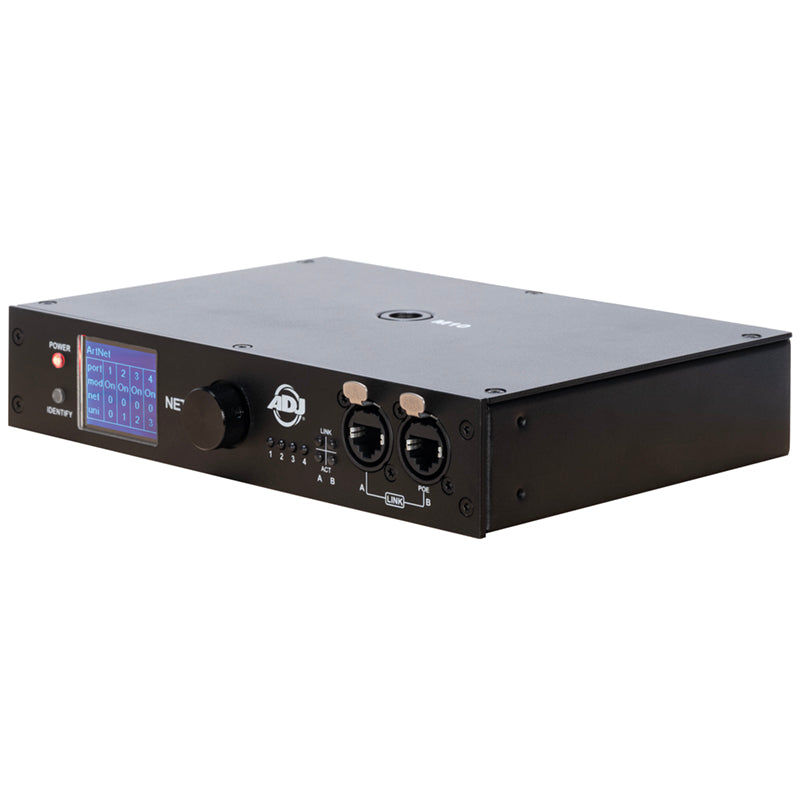

• 1.7" LCD display plus web browser configuration
• Truss mounting via M10/M12 threads; optional rack mounting

Key Specs

• Ports: 4x 5-pin XLR DMX
• Network: 2x RJ45
• Protocols: DMX512, RDM, Art-Net, sACN
• Power: AC 95-240V, 50/60Hz or PoE 802.3af
• Power consumption: 5W
• IP rating: IP20
• Dimensions: 5.93" x 8.48" x 1.66" (150.5 x 215.3 x 42 mm)
• Weight: 3.16 lb (1.43 kg)
• Package includes: NET 4, locking power cord
