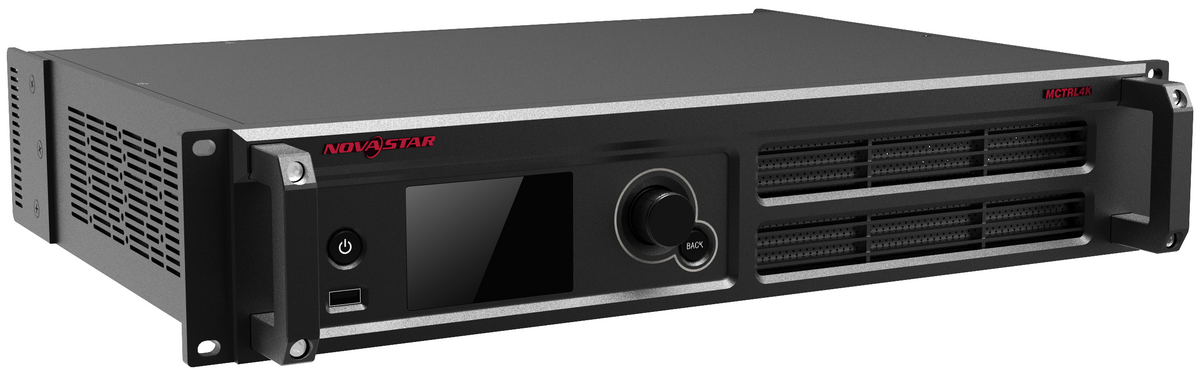

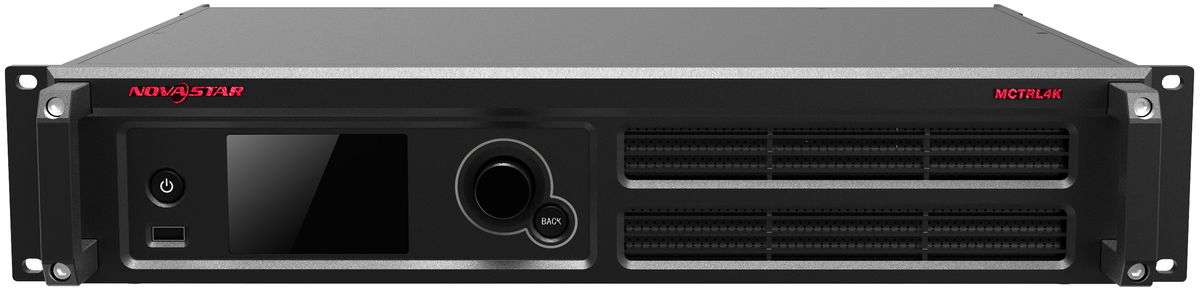

MCTRL4K - Novastar MCTRL4K

Overview
NovaStar independent master controller with a single-unit loading capacity of 3840 x 2160 at 60 Hz for oversized LED displays. It provides 16 Neutrik Gigabit Ethernet outputs and four fiber outputs.

Best for
Large LED video walls for events, rental staging and fixed installations.

Highlights

• DP 1.2, HDMI 2.0 and two dual-link DVI inputs
• NovaStar G4 engine for stable, flicker-free images
• Pixel-by-pixel calibration and white balance calibration
• Screen configuration without a PC and manual brightness adjustment
• Multiple units can be cascaded

Key Specs

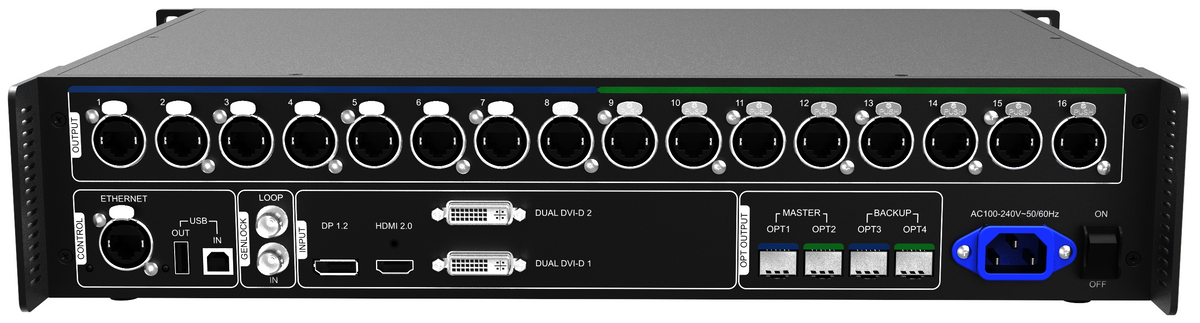

• Inputs: 1 x DP 1.2, 1 x HDMI 2.0, 2 x dual-link DVI
• Max resolution: 3840 x 2160 @ 60 Hz
• Ethernet outputs: 16 x Gigabit (Neutrik RJ45)
• Fiber outputs: 4 x LC
• Control: Ethernet, USB
• Power: 100-240 V AC, 50/60 Hz
• Power consumption: 30 W
• Operating temperature: -20°C to 60°C
• Dimensions: 19.0 x 14.6 x 3.5 in (482.6 x 372 x 89 mm)
• Weight: 10.1 lb (4.6 kg)
