MAR-91700019 - Junction Box Power DMX to PD
Regular price
$105.66 USD
Sale price
Regular price
Overview

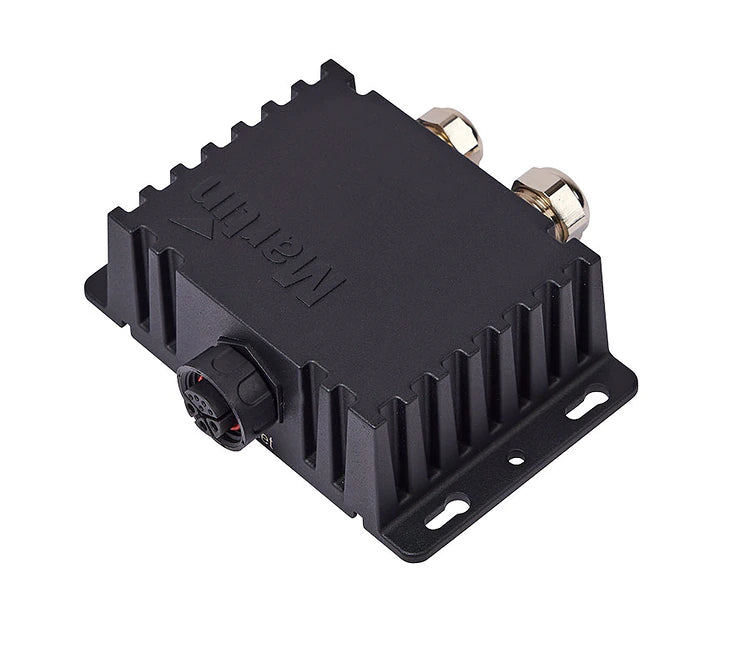

A junction box that takes separate power and DMX feeds into terminal blocks and outputs a PD (power + data) female connector for Martin Exterior fixtures. It has a cast aluminium IP66 housing and can be mounted in any orientation.
Compatible with
Martin Exterior Linear Pro, Exterior Wash Pro and Exterior Projection Pro.
Highlights
- Spring-loaded internal terminal blocks
- Power gland M20 (cable 8-10 mm), data gland M16 (cable 5-7 mm)
- IP66, IK08 and C5 corrosion rating
- Supplied with flange brackets
Key Specs
- Output: PD female connector
- Dimensions: 112 x 40 x 24 mm
- Weight: 0.42 kg (0.9 lbs)
- Operating temperature: -30 to 45 C
