MAR-90721204 - DCE DataSplitterBooster IP

Overview

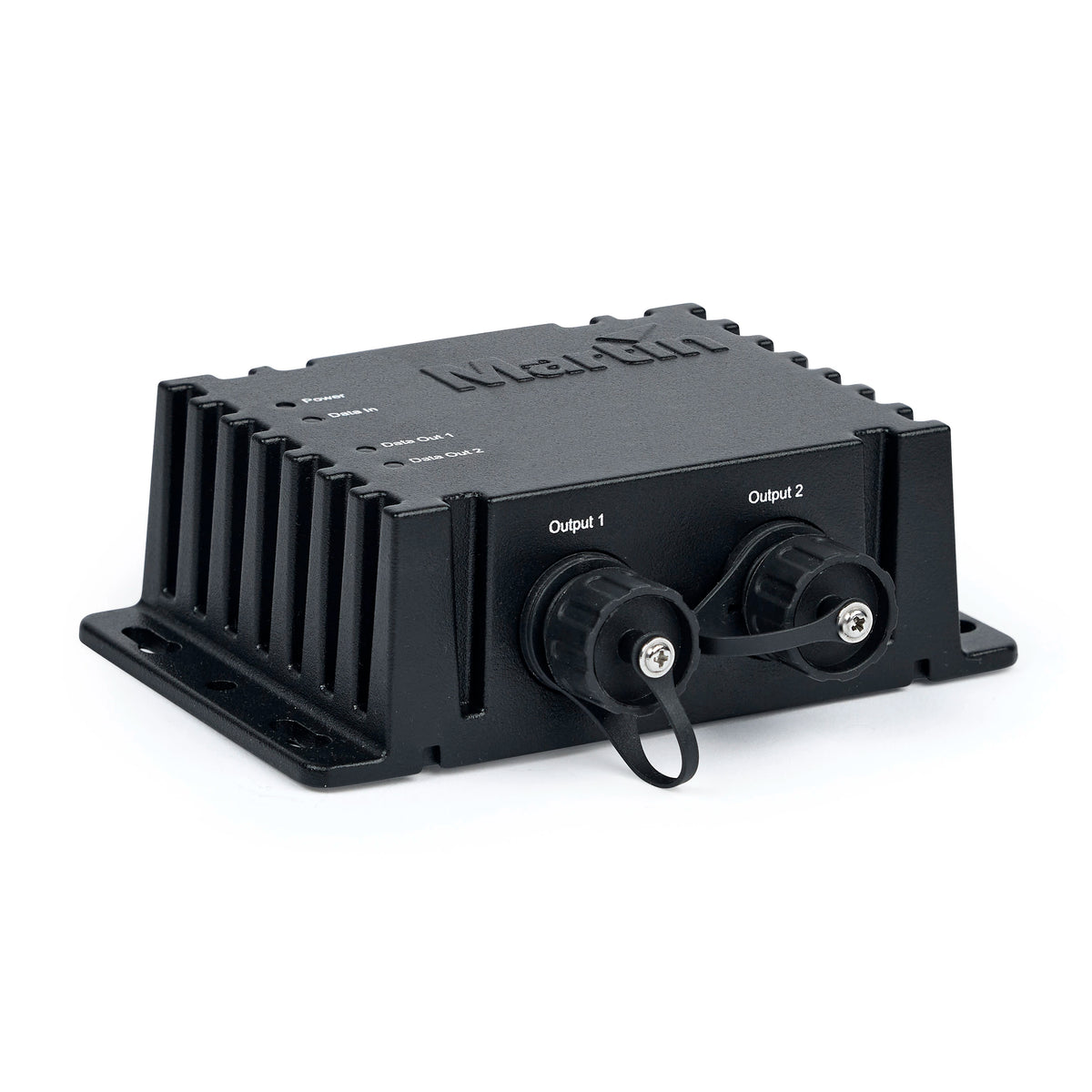

The Martin DCE DataSplitterBooster IP is an indoor/outdoor power+data splitter for Martin Creative LED fixtures. It splits a chain into two branches or extends the signal over longer distances. It has one DCE 7-pin hybrid input and two outputs in an IP66 housing.

Best for
Branching or extending power+data runs for VDO Sceptron XB and Exterior Dot Pro systems.

Highlights

• One DCE 7-pin hybrid input and two outputs
• Up to 90 m cable per segment
• IP66 and IK08, convection cooled with no fans
• Wall mount with flanges, or truss mount using M10 holes
• Requires P3 System Controller software 6.1.0 or later

Key Specs

• Input: 48 VDC +/-10%; 0.9 W typical consumption
• Ethernet: 100 Mbit; P3, sACN, Art-Net, RDM over Art-Net
• Protection: IP66; -30 to +55 C operating; 4 kV surge protection
• Dimensions: 124 x 40 x 124 mm (4.9 x 1.6 x 4.9 in)
• Weight: 0.5 kg (1.1 lbs)
