MAR-90721202 - P3 PowerPort 500 IP Install

Overview

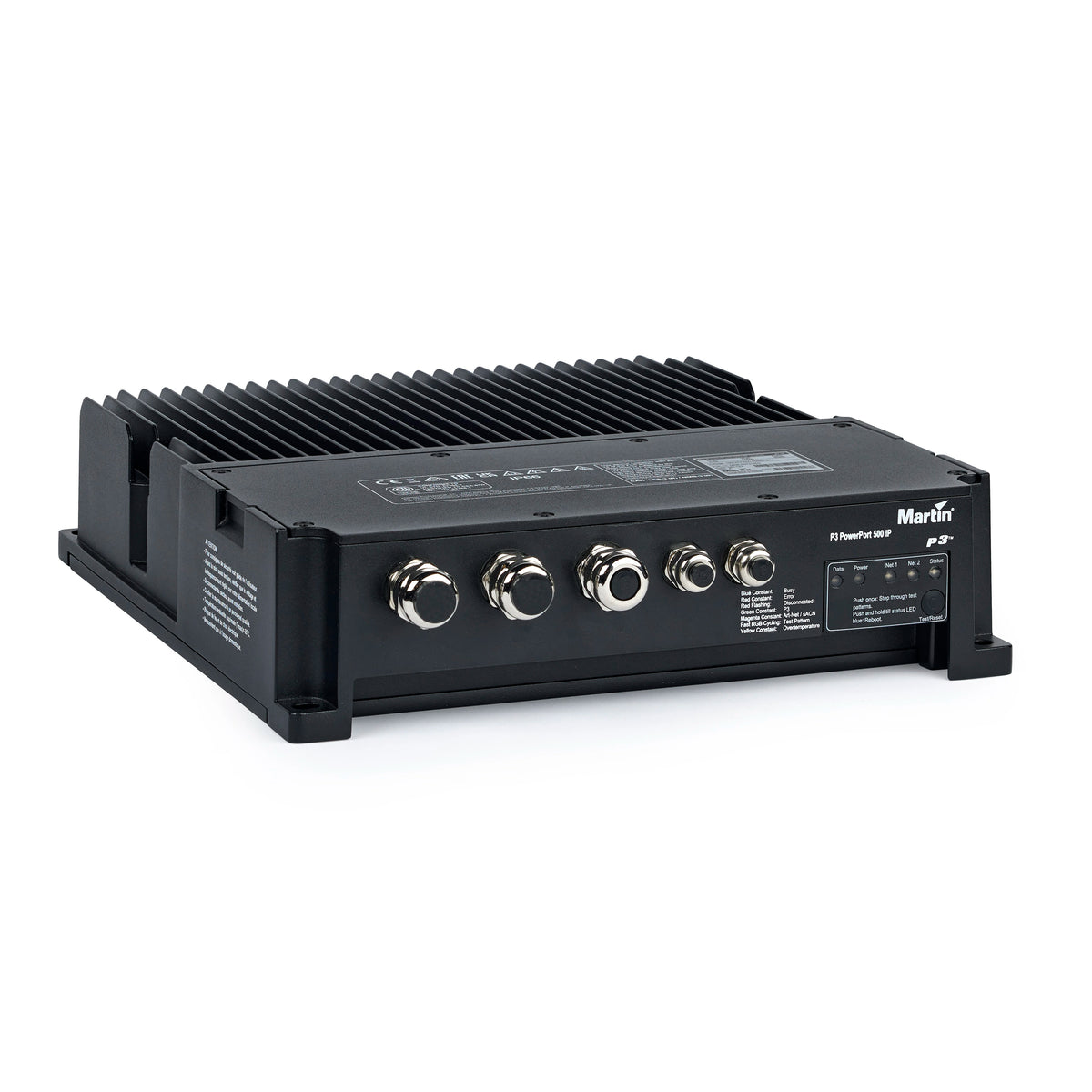

The Martin P3 PowerPort 500 IP Install is a wall-mount indoor/outdoor power and data unit for fixed installations of Martin Creative LED fixtures. It delivers 48 VDC at 10 A on one output and has a built-in network switch with fail-safe bypass. The IP66 enclosure uses toolless terminal blocks and cable glands.

Best for
Permanent indoor/outdoor installations with VDO Sceptron XB and Exterior Dot Pro fixtures.

Highlights

• 1 power+data output, 48 VDC / 10 A (500 W max)
• IP66 enclosure with IK08 impact rating and C5 High corrosion resistance
• Toolless terminal blocks with 4 kV surge protection
• Cable glands: M20x1.5 (power), M12x1.5 (Ethernet)
• Local status LEDs and test button

Key Specs

• Output: 48 VDC / 10 A, 500 W max; 100 Mbit Ethernet
• Input: 100-277 V AC, 50/60 Hz
• Protocols: Art-Net, sACN, Martin P3, RDM over Art-Net
• Protection: IP66; -30 to +55 C operating, convection cooled
• Dimensions: 325 x 84 x 385 mm (12.8 x 3.3 x 15.2 in)
• Weight: 9.5 kg (20.9 lbs)
