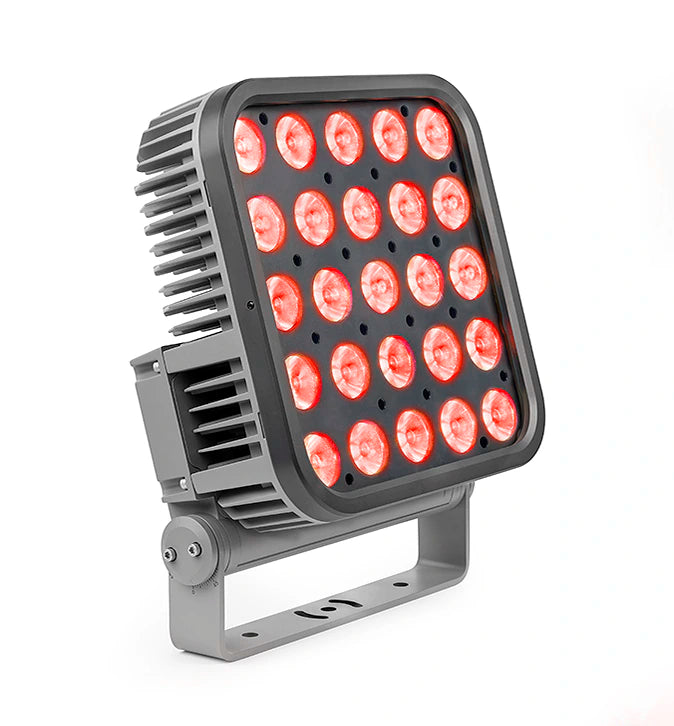

MAR-90590008 - Exterior Wash Pro XL QUAD, US, Grey

Overview
The Exterior Wash Pro XL QUAD is an IP66 outdoor colour wash light in Martin's four-size Exterior Wash Pro family. It uses 25 high-power RGBW LEDs with factory colour calibration and a dedicated colour temperature control channel from 1000 K to 12,500 K. The native beam is 8°, adjustable with optional micro lenses.

Best for
Building facades and large structures in permanent outdoor installations.

Highlights

• Factory-calibrated colour with colour boost: Martin quotes up to 3x brighter saturated and mixed colours
• Native 8° beam; optional micro lenses give 11° / 15° / 30° / 50° / 8°×50°
• Optional baffle snoot for glare and beam control
• DMX512 and RDM with 6/3/7/4 channel modes, plus magnetic-sensor local diagnostics and up to 20 standalone scenes
• Weatherproof cast aluminium housing with a 5-year warranty

Key Specs

• Light source: 25 high-power RGBW LEDs (Osram)
• Output: 10,400 lm at full output
• Beam angle: 8° native, 11°-50° with micro lenses
• Power: 250 W max, 100-240 / 277 V, 50/60 Hz
• Dimensions: 175 × 351 × 438 mm (6.89 × 13.82 × 17.24 in.)
• Weight: 17.7 kg (39.0 lbs)
• Protection: IP66, IK08, C5 High corrosion rating
• Housing: cast aluminium, Traffic grey RAL 7042
