MAR-90580003 - Exterior AC-Feeder

Overview

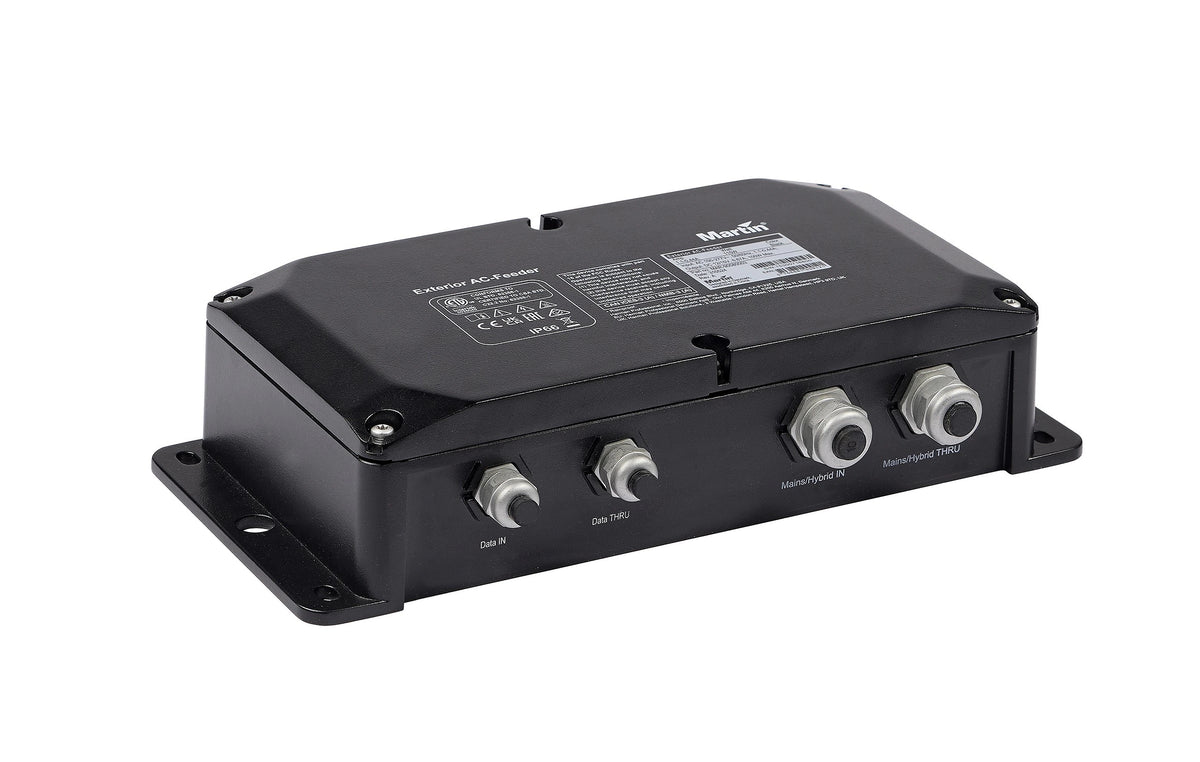

The Exterior AC-Feeder is an IP66 multi-protocol driver box that powers and controls Exterior Dot-1, Dot-4 and Dot-9 Pro strings directly from line voltage. It outputs 15 VDC and accepts Martin P3, Art-Net or sACN data.

Best for
Exterior Dot Pro string installations where AC mains power is available at the feeder location.

Highlights

• Connects directly to 100-240/277 VAC, 50/60 Hz; outputs 15 VDC to Dot Pro strings
• Martin P3, Art-Net or sACN with automatic detection and RDM
• Fail-safe Ethernet bypass and thermal protection
• Surface or truss mountable (M6 slots, M12 rigging hole)

Key Specs

• Output: 15 VDC, 115 W max at full load
• Dimensions: 325 x 144 x 69 mm (12.8 x 5.6 x 2.7 in.)
• Weight: 2.7 kg (5.95 lbs)
• Protection: IP66, IK08, C5 High corrosion resistance
• Operating temperature: -30 to +55 C (-22 to +131 F)
