MAR-90580002 - Exterior Dot-9 Pro, 400mm, 36pcs 2m ld

Overview

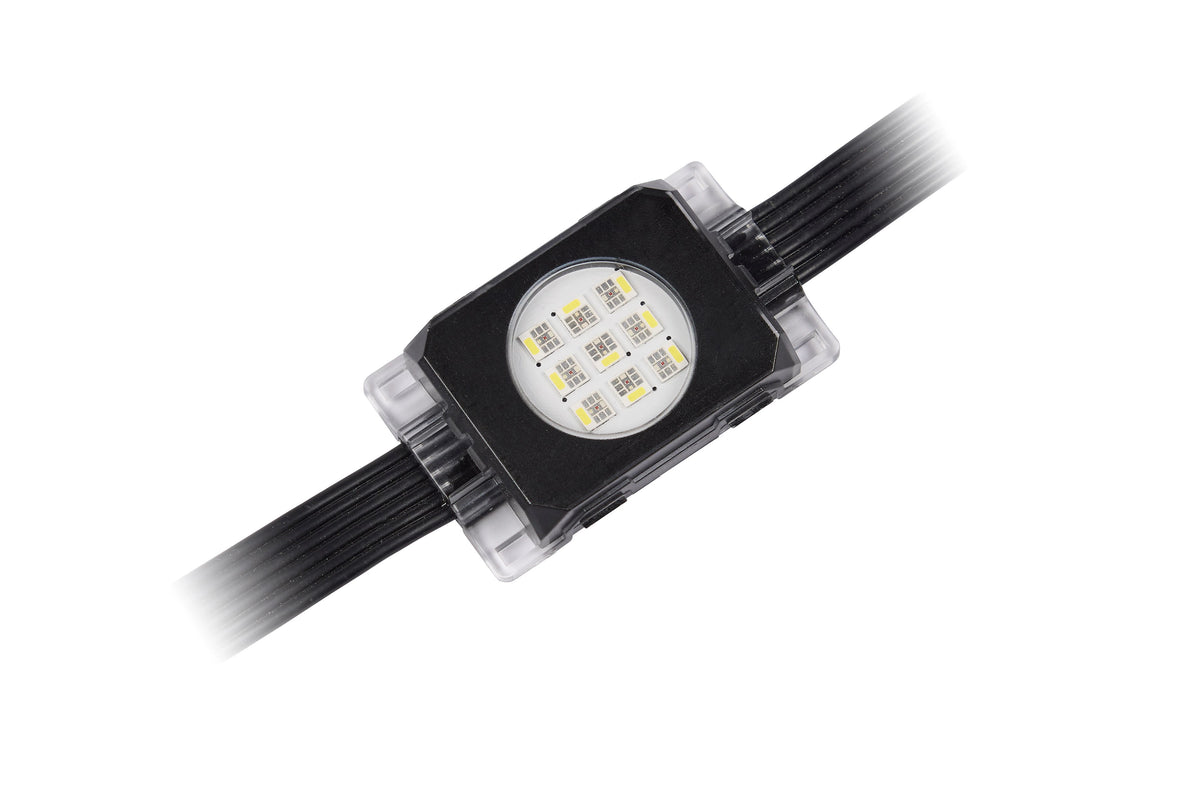

The Exterior Dot-9 Pro is an outdoor-rated string of 36 individually controllable RGBW dots at 400 mm (15.7 in.) spacing, each with nine RGBW LEDs, supplied with a 2 m lead-in cable. It is the largest string-based dot in the Exterior Dot Pro family.

Best for
Large-pitch outdoor pixel lines, building outlines and facade lighting that must be visible from a distance.

Highlights

• 9 RGBW LEDs per dot, 189 lumens (clear front), 150 degree viewing angle (180 degrees with optional dome)
• Up to 36 dots per string; pitch can be set from 175 mm to 2000 mm
• Powered at 15 VDC from the Exterior AC-Feeder or DC-Feeder
• Optional glare kits, dome kits, mounting brackets and 2 m mounting profile
• Martin P3, Art-Net and sACN control with RDM

Key Specs

• Pixel: 66.2 x 42.2 x 13.6 mm (2.6 x 1.7 x 0.54 in.), no dome
• Output: 189 lm / 70 cd per dot at full white, 100,000 hour LED lifetime
• Power: 15 VDC, 2.75 W max per dot (1.45 W half power)
• Protection: IP67, IK08, C5 High corrosion resistance, -30 to +55 C
• Weight: 2.75 kg (6.1 lbs) for 36 dots at 400 mm spacing with 2 m lead
