MAR-90580001 - Exterior Dot-4 Pro, 200mm, 64 pcs, 2m ld

Overview

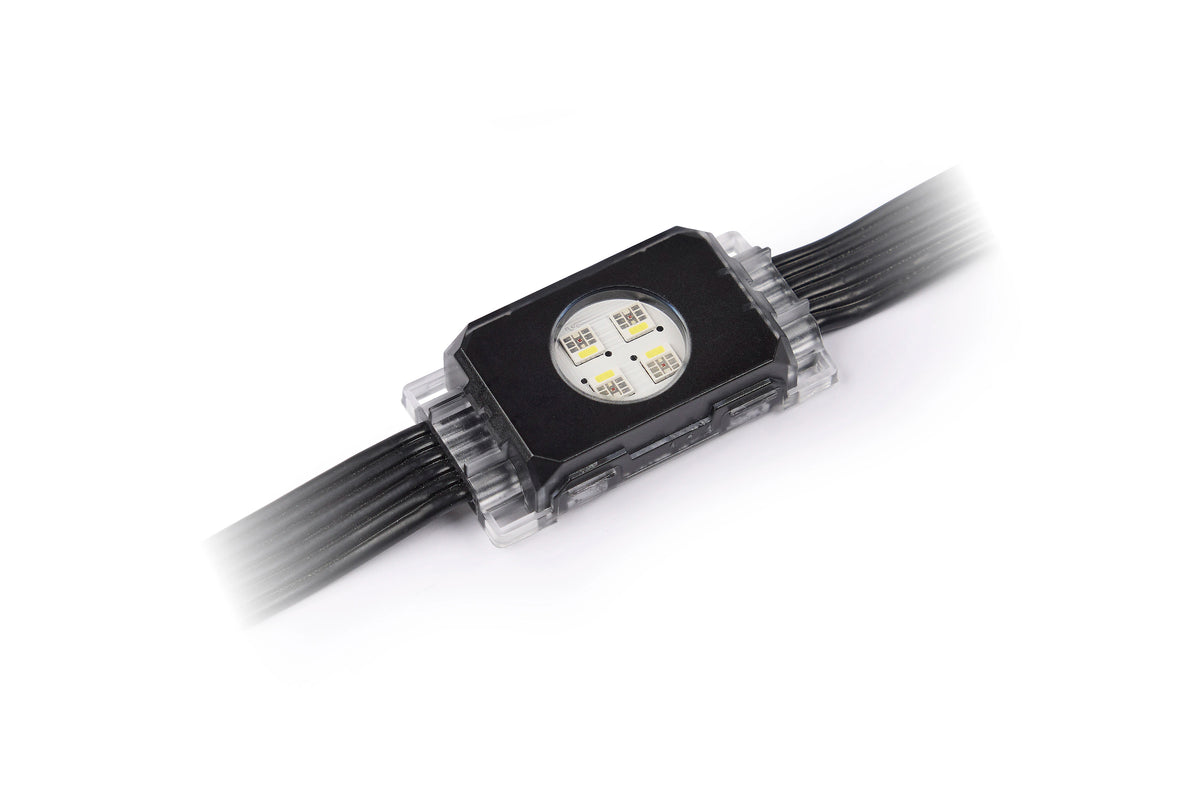

The Exterior Dot-4 Pro is an outdoor-rated string of 64 individually controllable RGBW dots at 200 mm (7.9 in.) spacing, each with four RGBW LEDs, supplied with a 2 m lead-in cable. It sits between the Dot-1 and Dot-9 in the Exterior Dot Pro family.

Best for
Outdoor pixel lines, facade and landscape accents and medium-pitch LED mapping.

Highlights

• 4 RGBW LEDs per dot, 71 lumens (clear front), 150 degree viewing angle (180 degrees with optional dome)
• Up to 64 dots per string; pitch can be set from 155 mm to 2000 mm
• Powered at 15 VDC from the Exterior AC-Feeder or DC-Feeder
• Optional glare kits, dome kits, mounting brackets and 2 m mounting profile
• Martin P3, Art-Net and sACN control with RDM

Key Specs

• Pixel: 59 x 32.4 x 13.2 mm (2.3 x 1.27 x 0.52 in.), no dome
• Output: 71 lm / 26 cd per dot at full white, 100,000 hour LED lifetime
• Power: 15 VDC, 1.5 W max per dot (0.75 W half power)
• Protection: IP67, IK08, C5 High corrosion resistance, -30 to +55 C
• Weight: 2.96 kg (6.5 lbs) for 64 dots at 200 mm spacing with 2 m lead
