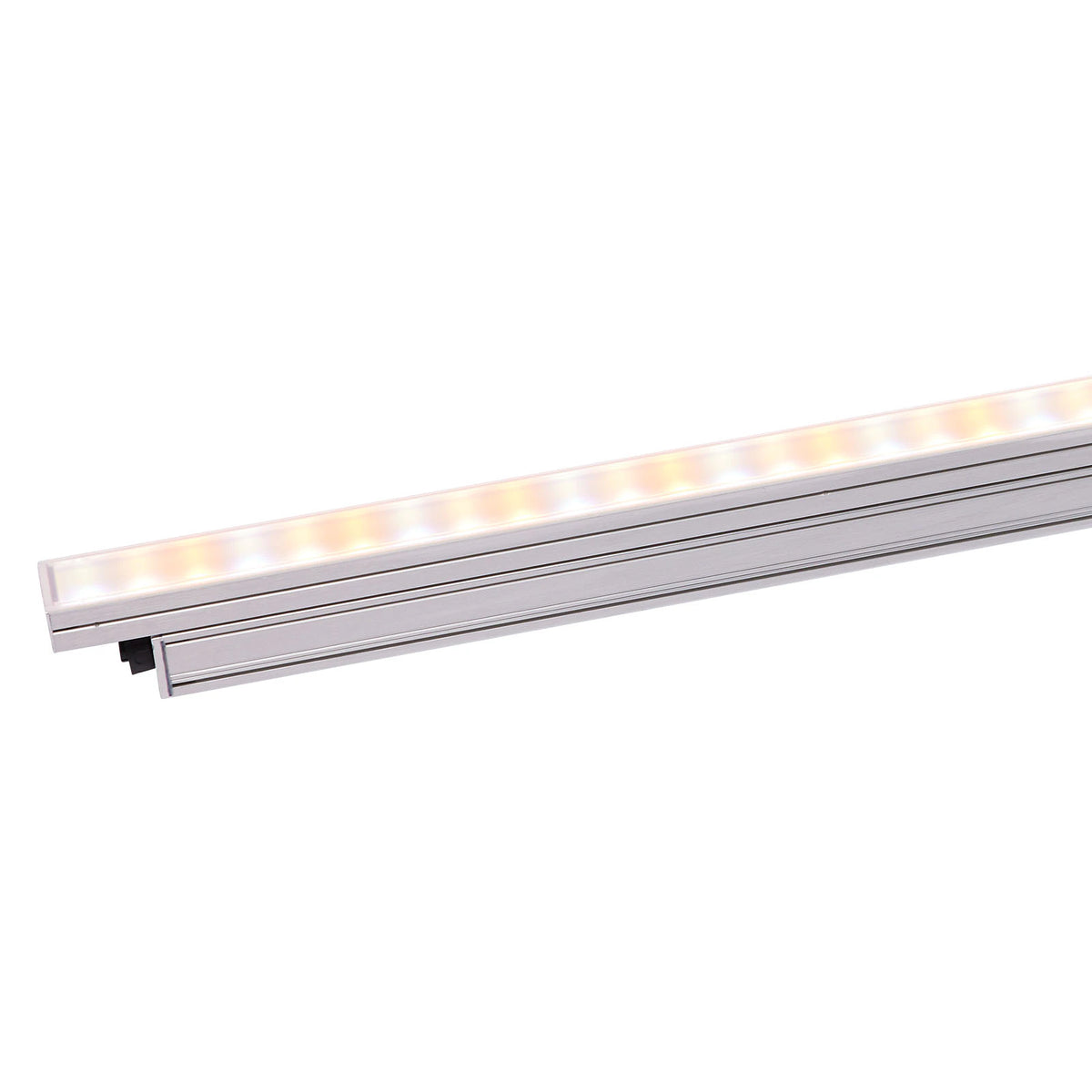

MAR-90570007 - Exterior Linear Pro-Cove, CTC, 1ft

Overview
The Exterior Linear Pro Cove CTC is an IP66 outdoor linear LED fixture for indirect (cove) lighting. It uses 12 white LEDs per foot (2700 K, 4000 K and 6500 K) for tunable white from 2700 K to 6500 K and a 100° beam. This listing is the 1ft (312 mm) length.

Best for
Indirect lighting of ceilings, walls and recesses on stadiums, cruise ships, theme parks and hotels.

Highlights

• 100° beam for uniform indirect light
• CRI above 70 and more than 60 lm/W; 50,000 hour minimum LED life
• Selectable 12 W / 10 W / 5 W per foot power modes (including ASHRAE-compliant), integrated 100-277 V power supply
• DMX512 and RDM; daisy-chain wiring with combined power/data connectors; up to 20 standalone scenes

Key Specs

• Light source: 12 white LEDs per foot (2700 K / 4000 K / 6500 K)
• Beam angle: 100°
• Output: 580 lm @ 4000 K, 560 lm @ 6500 K, 520 lm @ 2700 K
• Power: Max 12 W / 10 W / 5 W selectable modes
• Dimensions: 312 × 40 × 68 mm (12.3 × 1.57 × 2.67 in.)
• Weight: 0.85 kg (1.9 lbs)
• Protection: IP66, IK08, C5 corrosion rating; 100-277 V AC, 50/60 Hz
