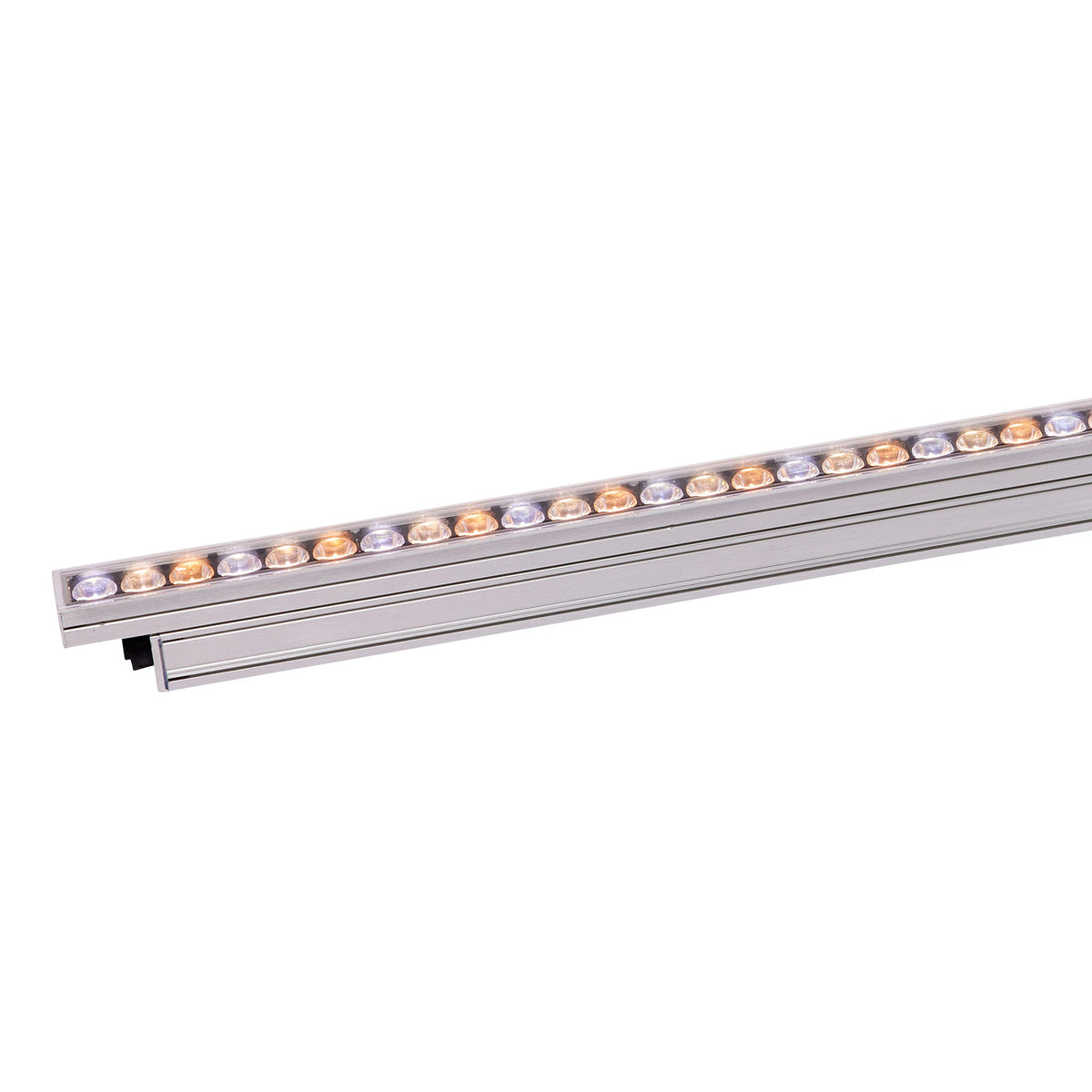

MAR-90570006 - Exterior Linear Pro-Graze, CTC, 1ft

Overview
The Exterior Linear Pro Graze CTC is an IP66 outdoor linear LED fixture for grazing walls and textured surfaces. It uses 12 white LEDs per foot (2700 K, 4000 K and 6500 K) for tunable white from 2700 K to 6500 K and a 9° beam. This listing is the 1ft (312 mm) length.

Best for
Grazing facades, textured walls and other architectural surfaces on stadiums, cruise ships, theme parks and hotels.

Highlights

• 9° beam, with 9°×30° and 9°×60° asymmetric beams available using optional microlens film
• CRI above 70 and more than 60 lm/W; 50,000 hour minimum LED life
• Selectable 12 W / 10 W / 5 W per foot power modes (including ASHRAE-compliant), integrated 100-277 V power supply
• DMX512 and RDM; daisy-chain wiring with combined power/data connectors; up to 20 standalone scenes

Key Specs

• Light source: 12 white LEDs per foot (2700 K / 4000 K / 6500 K)
• Beam angle: 9° (9°×30° and 9°×60° with optional microlens film)
• Output: 900 lm @ 4000 K, 850 lm @ 6500 K, 790 lm @ 2700 K
• Power: Max 12 W / 10 W / 5 W selectable modes
• Dimensions: 312 × 40 × 68 mm (12.3 × 1.57 × 2.67 in.)
• Weight: 0.85 kg (1.9 lbs)
• Protection: IP66, IK08, C5 corrosion rating; 100-277 V AC, 50/60 Hz
