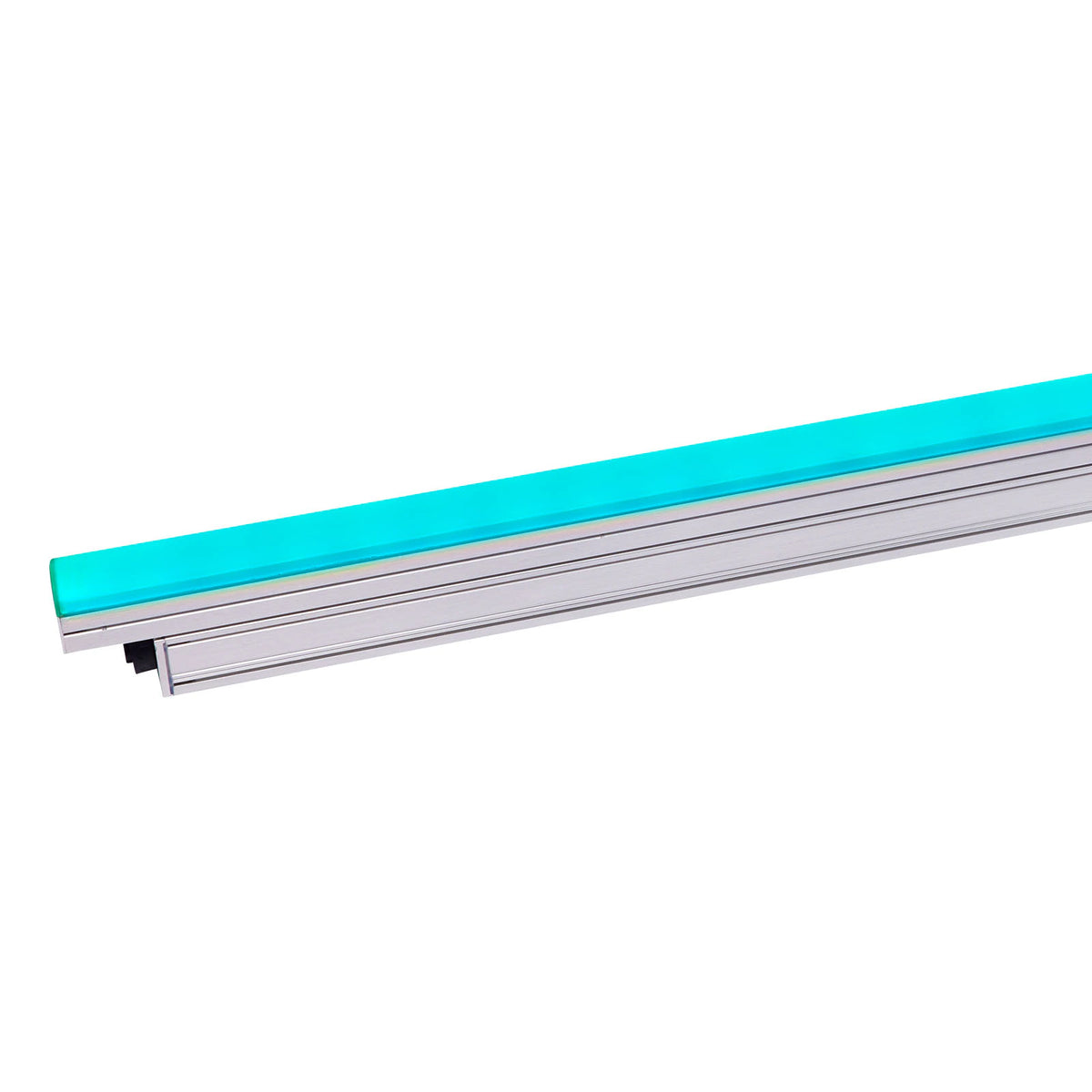

MAR-90570005 - Exterior Linear Pro-Dv, QUAD, 4ft

Overview
The Exterior Linear Pro DV QUAD is an IP66 outdoor direct-view linear LED fixture with a 180° beam and diffused front, for installations where the light source itself is the visual element. It uses 8 RGBW LEDs per foot with a dedicated colour temperature control channel (1800 K to 12,000 K). This listing is the 4ft (1227 mm) length.

Best for
Architectural lines and edges where the fixture itself is meant to be seen, on stadiums, cruise ships, theme parks and similar venues.

Highlights

• 180° beam with fine segment control (0.5 ft, 1 ft or full-fixture segments)
• Colour boost: Martin quotes up to 3x brighter saturated and mixed colours; factory-calibrated colours with homogeneous colour mixing
• Segment modes down to 6 inches for pixel-style effects along the fixture
• Selectable 12 W / 10 W / 5 W per foot power modes (including ASHRAE-compliant), integrated 100-277 V power supply
• DMX512 and RDM; daisy-chain wiring with combined power/data connectors; up to 20 standalone scenes

Key Specs

• Light source: 8 RGBW LEDs per foot (QUAD)
• Beam angle: 180°
• Output: 1760 lm @ 6000 K, 1600 lm @ 4000 K, 1400 lm @ 2700 K (48 W)
• Power: Max 48 W / 40 W / 20 W selectable modes
• Dimensions: 1227 × 40 × 84 mm (48.3 × 1.57 × 3.31 in.)
• Weight: 2.8 kg (6.2 lbs)
• Protection: IP66, IK08, C5 corrosion rating; 100-277 V AC, 50/60 Hz
