MAR-90570004 - Exterior Linear Pro-Cove, QUAD, 4ft

Overview

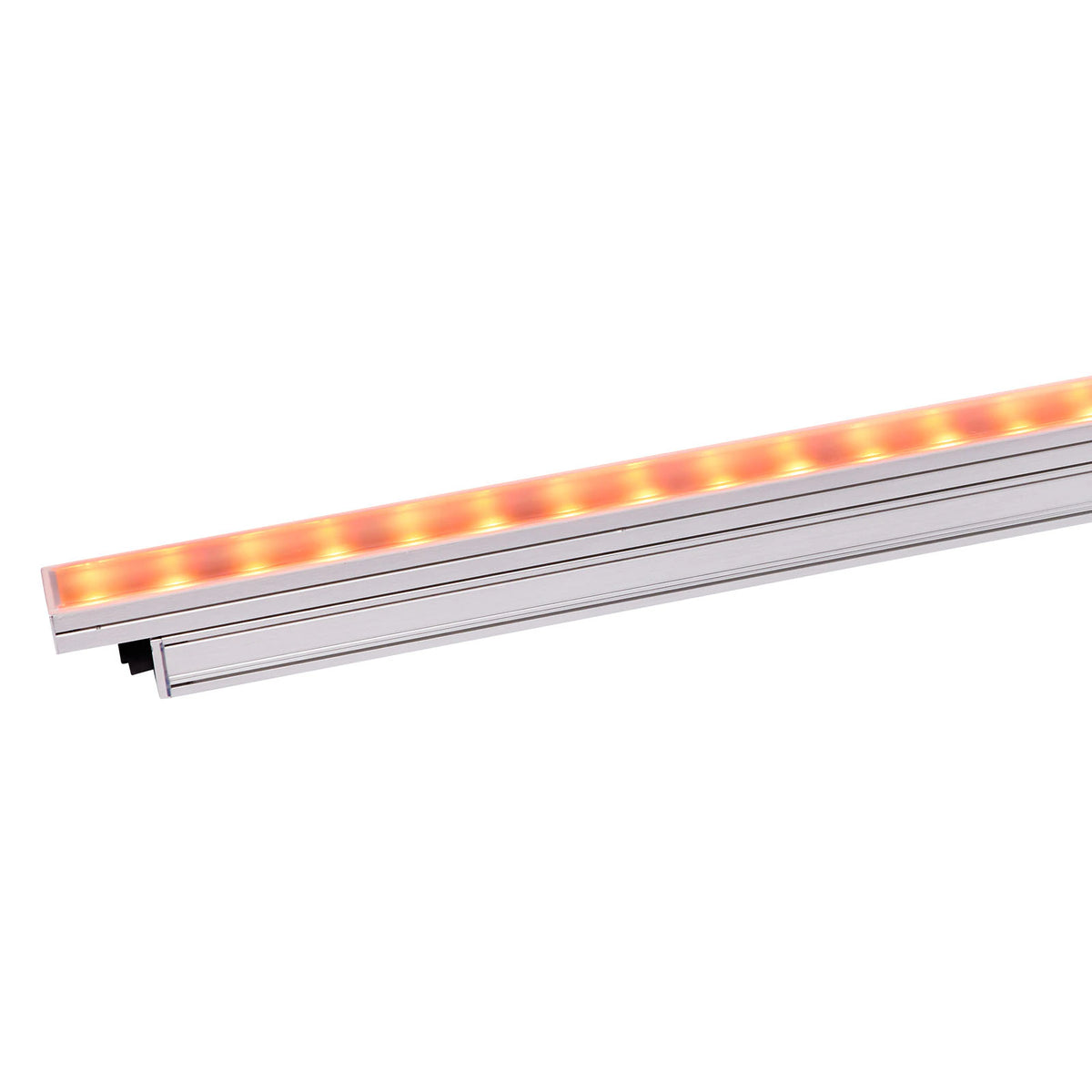

The Exterior Linear Pro Cove QUAD is an IP66 outdoor linear LED fixture for indirect (cove) lighting. It uses 8 RGBW LEDs per foot with a dedicated colour temperature control channel (1800 K to 12,000 K) and a 100° beam. This listing is the 4ft (1227 mm) length.

Best for
Indirect lighting of ceilings, walls and recesses on stadiums, cruise ships, theme parks and hotels.

Highlights

• 100° beam for uniform indirect light
• Colour boost: Martin quotes up to 3x brighter saturated and mixed colours; factory-calibrated colours with homogeneous colour mixing
• 6-inch segment mode on QUAD models
• Selectable 12 W / 10 W / 5 W per foot power modes (including ASHRAE-compliant), integrated 100-277 V power supply
• DMX512 and RDM; daisy-chain wiring with combined power/data connectors; up to 20 standalone scenes

Key Specs

• Light source: 8 RGBW LEDs per foot (QUAD)
• Beam angle: 100°
• Output: 2360 lm @ 6000 K, 2160 lm @ 4000 K, 1960 lm @ 2700 K (12 W per foot)
• Power: Max 48 W / 40 W / 20 W selectable modes
• Dimensions: 1227 × 40 × 68 mm (48.3 × 1.57 × 2.67 in.)
• Weight: 2.8 kg (6.2 lbs)
• Protection: IP66, IK08, C5 corrosion rating; 100-277 V AC, 50/60 Hz
