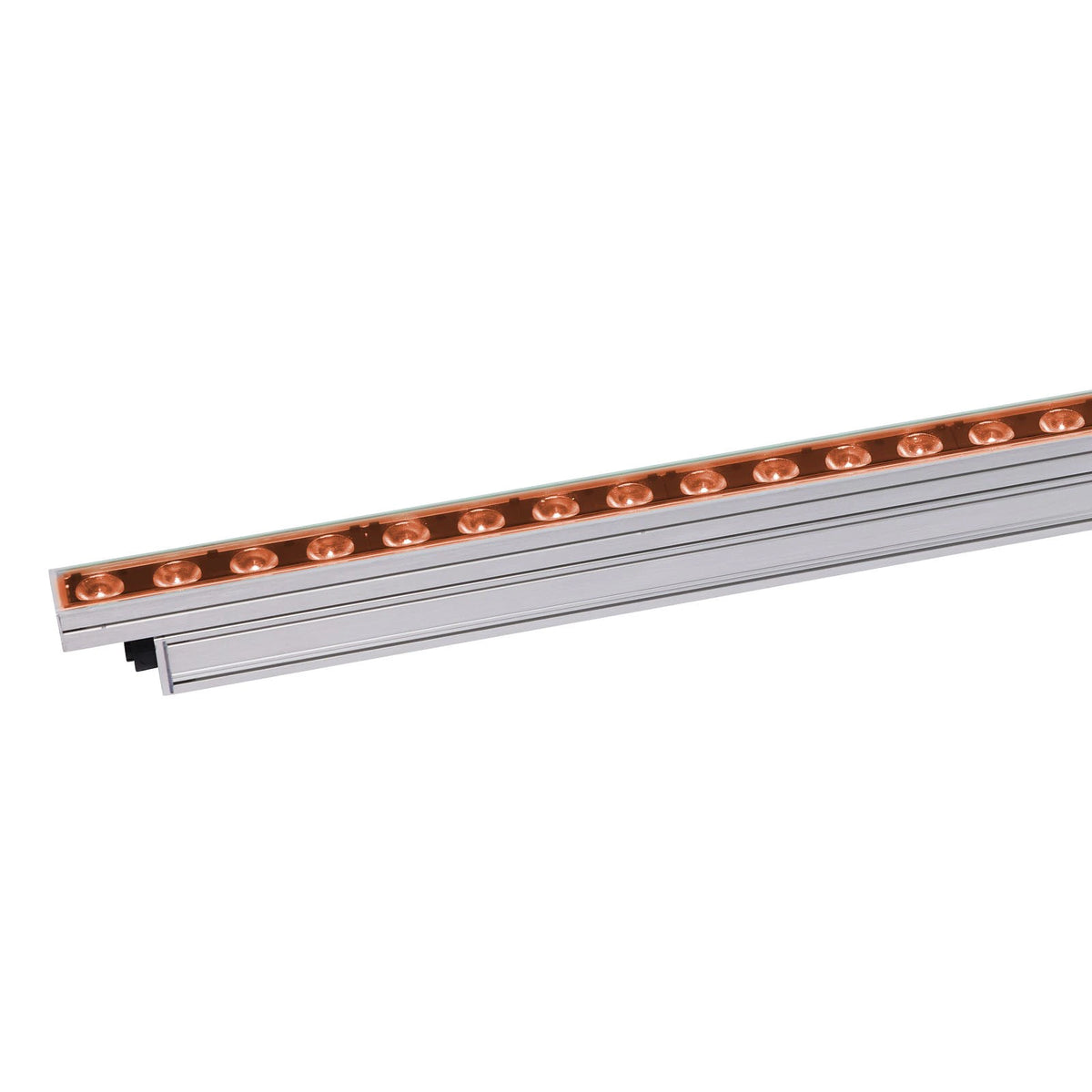

MAR-90570000 - Exterior Linear Pro-Graze, QUAD, 1ft

Overview
The Exterior Linear Pro Graze QUAD is an IP66 outdoor linear LED fixture for grazing walls and textured surfaces. It uses 8 RGBW LEDs per foot with a dedicated colour temperature control channel (1800 K to 12,000 K) and a 15° beam. This listing is the 1ft (312 mm) length.

Best for
Grazing facades, textured walls and other architectural surfaces on stadiums, cruise ships, theme parks and hotels.

Highlights

• 15° beam, with 15°×30° and 15°×60° asymmetric beams available using optional microlens film
• Colour boost: Martin quotes up to 3x brighter saturated and mixed colours; factory-calibrated colours with homogeneous colour mixing
• 6-inch segment mode on QUAD models
• Selectable 12 W / 10 W / 5 W per foot power modes (including ASHRAE-compliant), integrated 100-277 V power supply
• DMX512 and RDM; daisy-chain wiring with combined power/data connectors; up to 20 standalone scenes

Key Specs

• Light source: 8 RGBW LEDs per foot (QUAD)
• Beam angle: 15° (15°×30° and 15°×60° with optional microlens film)
• Output: 700 lm @ 6000 K, 670 lm @ 4000 K, 620 lm @ 2700 K
• Power: Max 12 W / 10 W / 5 W selectable modes
• Dimensions: 312 × 40 × 68 mm (12.3 × 1.57 × 2.67 in.)
• Weight: 0.85 kg (1.9 lbs)
• Protection: IP66, IK08, C5 corrosion rating; 100-277 V AC, 50/60 Hz
