90357560HU - VC-Grid 8x8 60 RGB
Regular price
$443.70 USD
Sale price
Regular price
Overview

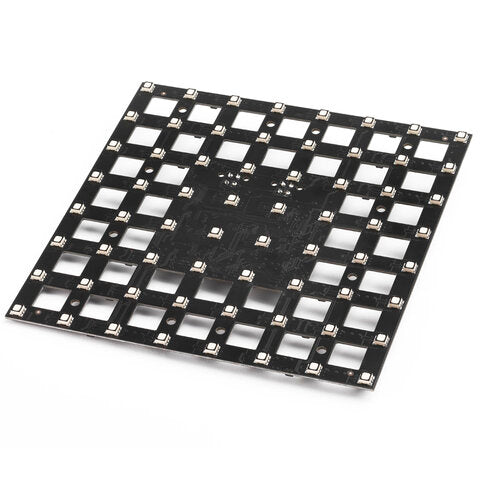

The Martin VC-Grid 8x8 60 RGB is a flat 8x8 LED video module with 64 individually controllable RGB pixels at a 60 mm pitch. It runs from DMX or the Martin P3 system and daisy-chains over hybrid power/data cabling. The wide pitch suits large-format pixel surfaces.
Best for
Stage design, set elements and architectural pixel surfaces.
Highlights
- 64 individually controllable RGB pixels (8x8) at 60 mm pitch
- Control by DMX or Martin P3 with automatic protocol detection
- 16-bit colour processing per channel
- Up to 12 modules per daisy-chain
Key Specs
- Pixel pitch: 60 mm; 750 nits calibrated
- Power: 48 VDC; 30 W peak, 10 W typical
- Protection: IP20
- Dimensions: 480 x 480 x 15 mm (18.9 x 18.9 x 0.6 in)
- Weight: 0.5 kg (1.1 lbs)
Manufacturer note: End-of-life item, currently available from manufacturer stock.
