90357140HU - VC-Dot 9 RGB 400mm pitch 36pcs 2m lead-in

Overview

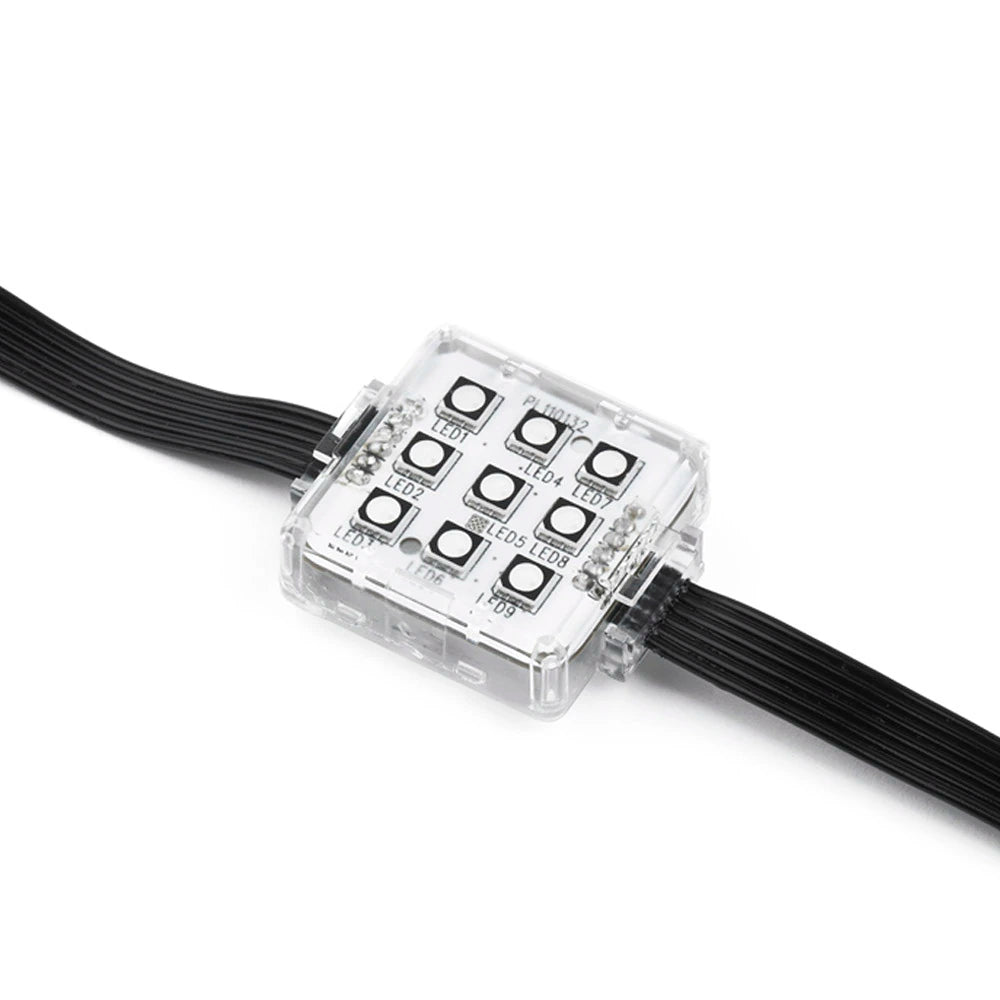

The Martin VC-Dot 9 RGB is a lightweight string of individually controllable RGB pixels (9 RGB LEDs per pixel) for custom LED video installations. This string has 36 pixels at 400 mm pitch with a 2 m lead-in. It runs on the Martin P3 protocol or DMX512 through a VC-Feeder.

Best for
Custom pixel-mapped designs such as ceilings, set pieces and architectural features, indoors or outdoors.

Highlights

• 36 pixels per string, individually controllable
• Pixel pitch adjustable from 150-2000 mm using VC-Dot splice connectors
• IP67-rated pixels for permanent indoor or outdoor use
• 16-bit control on P3, 8-bit on DMX

Key Specs

• LEDs per pixel: 9 RGB
• String: 36 pixels at 400 mm pitch with 2 m lead-in
• Pixel size: 48 x 40 x 13 mm (1.9 x 1.6 x 0.5 in)
• Operating voltage: 15 VDC (from a VC-Feeder); 2.75 W per pixel peak
• Protection: IP67; -20 to +55 C
• Weight: 1.8 kg (4.0 lbs) for the full string

Manufacturer note: End-of-life item with limited availability. Contact us to confirm stock before ordering.
