grandMA3 onPC command wing

Overview

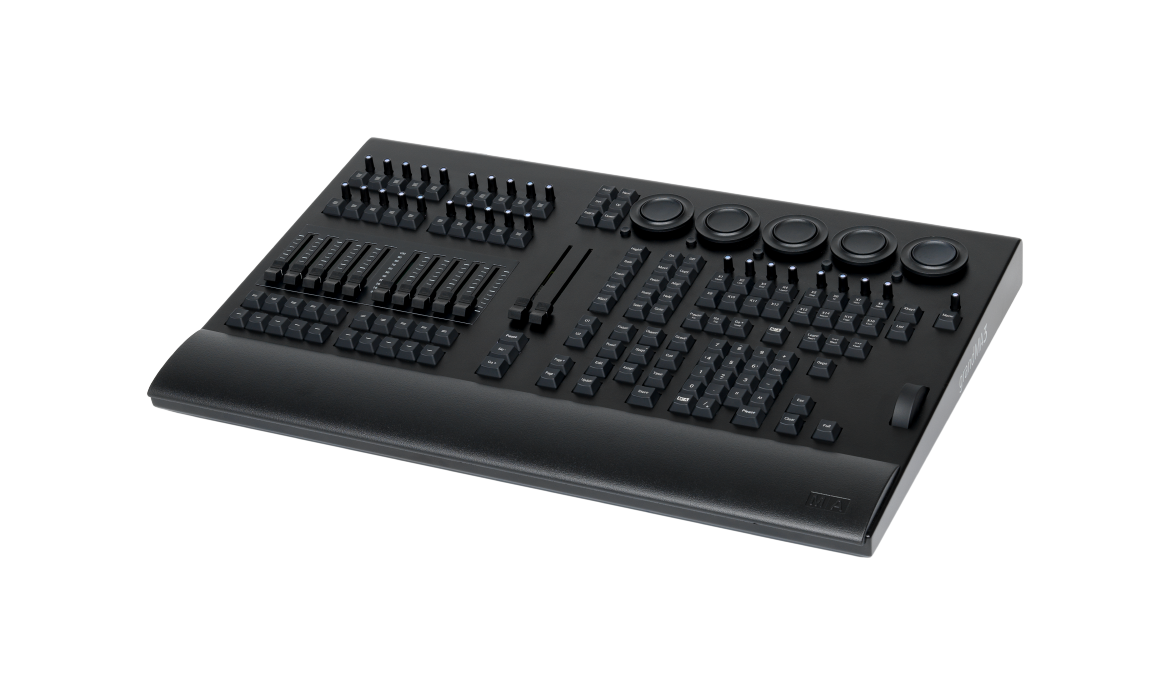

The grandMA3 onPC command wing from MA Lighting is a mobile hardware surface for the grandMA3 onPC software, connected to a computer via USB. It mirrors the command section of the grandMA3 consoles, provides 40 playbacks and unlocks up to 4,096 parameters.

Best for
Touring programmers, smaller venues and backup operators who want portable, affordable grandMA3 control with their own computer.

Highlights

• Command section layout matching the grandMA3 consoles
• 40 separate playbacks and 16 assignable x-keys
• 29 rotary RGB backlit encoders and 5 dual encoders
• 10 motorized 60 mm faders plus 2 motorized 100 mm A/B faders
• Connects to a computer running grandMA3 onPC via USB

Key Specs

• Part Number: MA4010511
• Parameters: 4,096 (HTP/LTP)
• Power: AC 100-240 V, 50/60 Hz, max. 50 VA
• DMX: 2 x DMX512-A out, 1 x DMX512-A in (5-pin XLR)
• Other I/O: USB 2.0 (type B), MIDI in/out, timecode, GPI (DE9), LED desk light (4-pin XLR)
• Dimensions: 25 x 17 x 4 in (620 x 427 x 102 mm)
• Net weight: 23 lb (10 kg)
• Operating temperature: 32-104 °F (0-40 °C)
