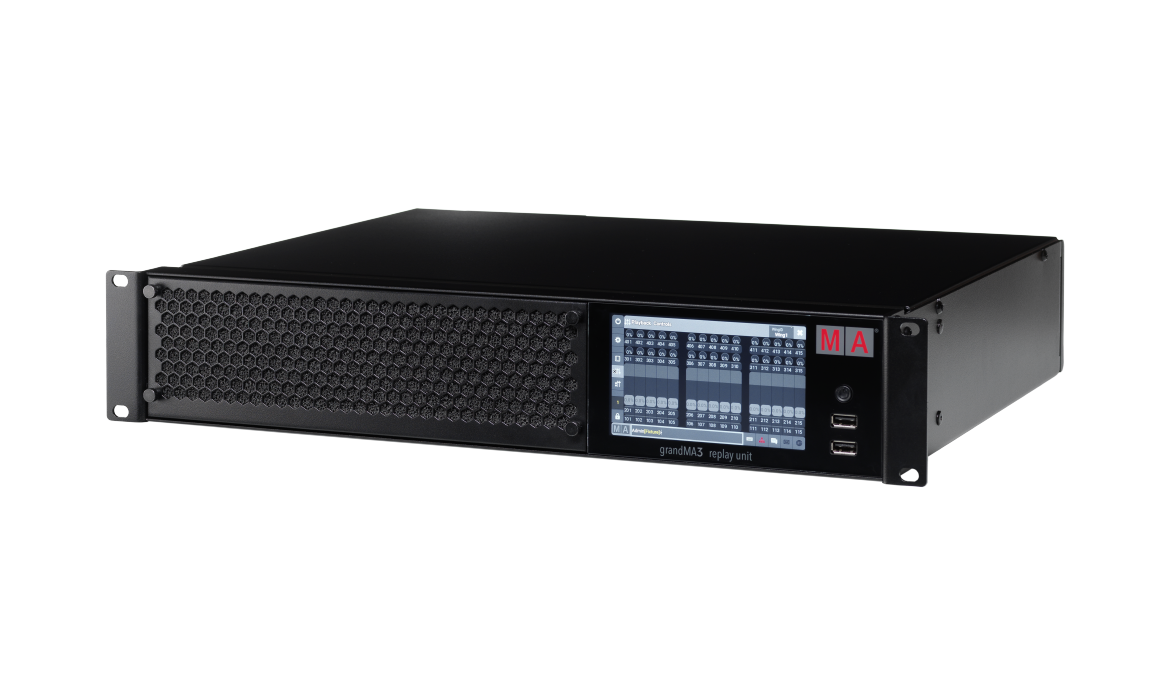

grandMA3 replay unit – 8,192 parameter rack-mount controller

Overview
The grandMA3 replay unit from MA Lighting is a 19 in rack-mount controller with the same features and functions as the grandMA3 consoles. It is operated via its integrated touchscreen plus mouse, keyboard and external screens, and delivers 8,192 parameters as standard.

Best for
Theatre, studio and architectural installations, and as a backup or playback unit in larger grandMA3 systems.

Highlights

• Full grandMA3 feature set in a rack-mount format
• Integrated touchscreen; operation by mouse, keyboard and external monitors
• Pairs with the grandMA3 extension for physical playbacks
• Scales to 250,000 parameters when combined with grandMA3 processing units
• Runs grandMA3 software and can also run grandMA2 software (Mode2) to expand existing grandMA2 systems

Key Specs

• Part Number: MA4010507
• Parameters: 8,192 (HTP/LTP); Mode2: 4,096
• Power: AC 100-240 V, 50/60 Hz, max. 200 VA
• DMX: 6 x DMX512-A out (5-pin XLR female), 1 x DMX512-A in (5-pin XLR male)
• Network: 3 x etherCON/RJ45
• Other I/O: MIDI in/out, LTC, audio in, GPI (DE9), 2 x DisplayPort 1.2, 2 x S/PDIF, 5 x USB 2.0
• Power connector: powerCON TRUE1
• Dimensions (W x D x H): 19 x 15 x 4 in (482 x 372 x 87 mm)
• Net weight: 14 lb (6 kg)
• Operating temperature: 32-104 °F (0-40 °C)
