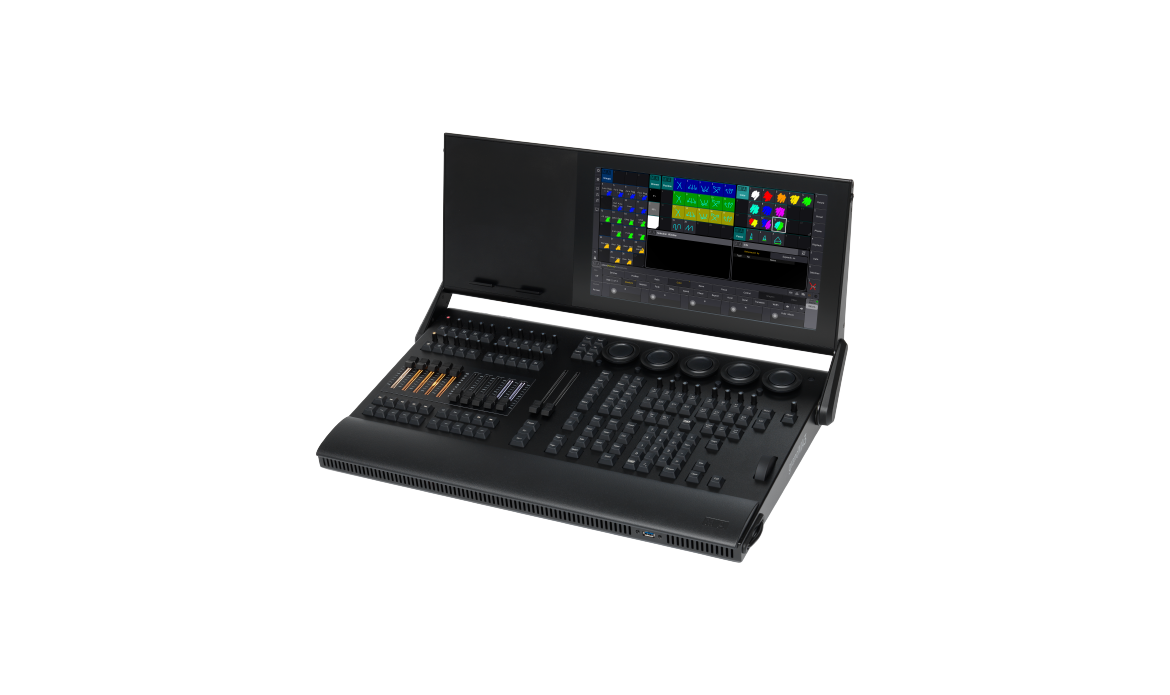

grandMA3 compact - 8,192 parameter console

Overview
The grandMA3 compact is the smaller of the two MA Lighting grandMA3 compact consoles, delivering the full grandMA3 system in a lightweight format. It offers 8,192 parameters, 40 physical playbacks, 16 assignable x-keys, a foldable multi-touch monitor and five dual encoders.

Best for
Owner/operators, small venues, houses of worship and tech-desk use.

Highlights

• 1 internal foldable multi-touch monitor plus 1 external touchscreen connection
• 40 separate playbacks and 16 assignable x-keys
• 29 rotary RGB backlit encoders and 5 dual encoders
• 10 backlit motorized 60 mm faders plus 2 motorized 100 mm A/B faders
• Scales to 250,000 parameters when combined with grandMA3 processing units
• Runs grandMA3 software and can also run grandMA2 software (Mode2) to expand existing grandMA2 systems

Key Specs

• Part Number: MA4010506
• Parameters: 8,192 (HTP/LTP); Mode2: 4,096
• Power: AC 100-240 V, 50/60 Hz, max. 250 VA
• DMX: 6 x DMX512-A out (5-pin XLR female), 1 x DMX512-A in (5-pin XLR male)
• Network: 3 x etherCON/RJ45
• Other I/O: MIDI in/out, LTC (3-pin XLR), audio in, GPI (DE9), 1 x DisplayPort 1.2, 2 x S/PDIF, 3 x USB 2.0, 2 x USB 3.0, LED desk light (4-pin XLR)
• Power connector: powerCON TRUE1
• Dimensions (folded): 26 x 17 x 7 in (661 x 429 x 160 mm)
• Net weight: 36 lb (16 kg)
• Operating temperature: 32-104 °F (0-40 °C)
