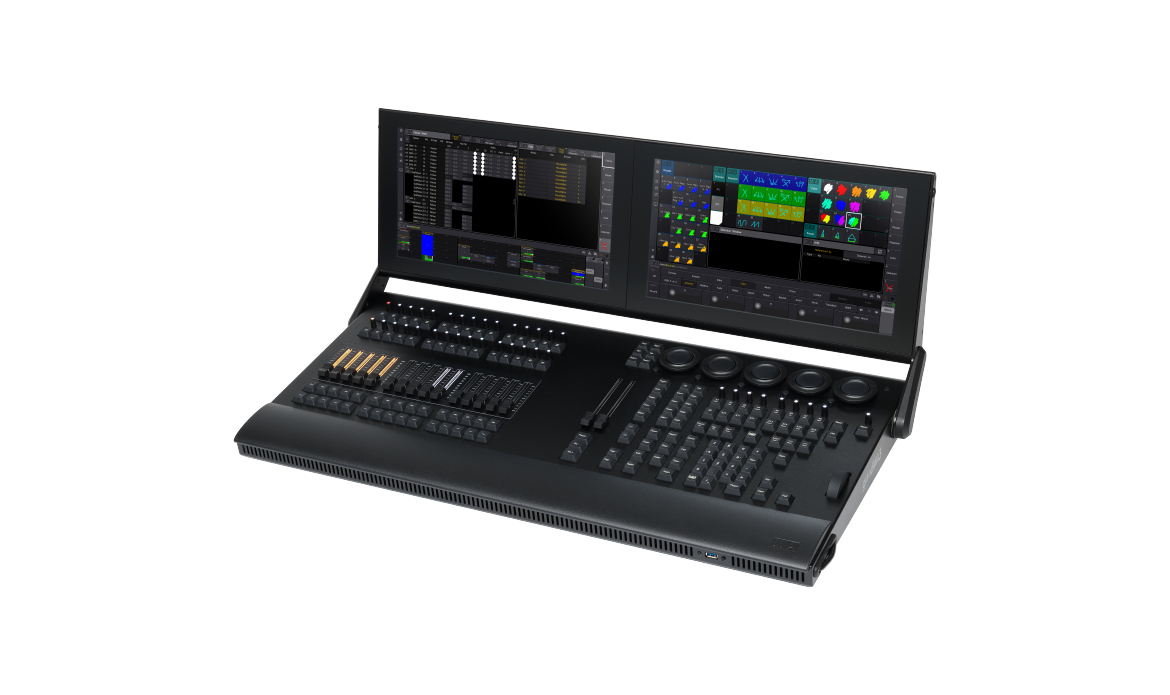

grandMA3 compact XT - 8,192 parameter console

Overview
The grandMA3 compact XT is the larger of the two MA Lighting grandMA3 compact consoles. It packs 8,192 parameters, 60 physical playbacks, two large foldable multi-touch monitors, five dual encoders and a complete command area into a portable console.

Best for
Owner/operators, smaller tours and tech-desk use where full grandMA3 features are needed in a transportable size.

Highlights

• 2 internal foldable multi-touch monitors plus 1 external touchscreen connection
• 60 separate playbacks
• 39 rotary RGB backlit encoders and 5 dual encoders
• 15 backlit motorized 60 mm faders plus 2 motorized 100 mm A/B faders
• Scales to 250,000 parameters when combined with grandMA3 processing units
• Runs grandMA3 software and can also run grandMA2 software (Mode2) to expand existing grandMA2 systems

Key Specs

• Part Number: MA4010505
• Parameters: 8,192 (HTP/LTP); Mode2: 4,096
• Power: AC 100-240 V, 50/60 Hz, max. 250 VA
• DMX: 6 x DMX512-A out, 1 x DMX512-A in
• Network: 3 x etherCON
• Other I/O: MIDI, timecode, audio, GPI, DisplayPort 1.2, S/PDIF, USB
• Dimensions (folded): 34 x 17 x 7 in (845 x 429 x 160 mm)
• Net weight: 45 lb (20 kg)
• Operating temperature: 32-104 °F (0-40 °C)
