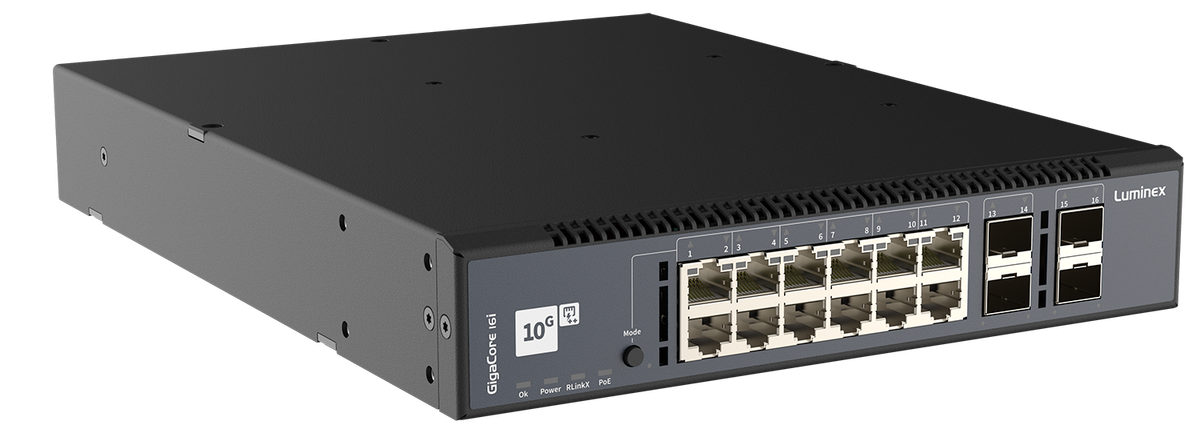

LU0100090-10G-P500 - Luminex GigaCore 16i (10Gb) - 12x1G - 4x10G (SFP+) - PoE++
Regular price
$3,555.00 USD
Sale price
Regular price
Overview
Half-width 19" 10 Gigabit Ethernet switch with 12 Gigabit RJ45 ports and 4 SFP+ cages, with PoE++ on all copper ports. Built for AV integration and installations with limited space.
Best for
AV installations, equipment racks with limited space, PoE device distribution
Highlights
- 12x 1 Gbps RJ45 and 4x 10 Gbps / 1 Gbps SFP+ cages
- PoE++ on all copper ports, up to 450 W total (up to 850 W with RPSU 5580)
- Rack or 100 x 100 mm VESA-spaced mounting
- Speed-controlled fans for quiet operation
- Managed via built-in web UI or Araneo, with pre-configured Groups (VLANs), RLinkX link redundancy and MultiLinkX link aggregation
- Validated for ProAV protocols including Dante, AVB/MILAN, RAVENNA/AES67, NDI, sACN and Art-Net
Key Specs
- Copper ports: 12x RJ45, 1 Gbps
- SFP+ cages: 4x 10 Gbps / 1 Gbps
- PoE: PoE++ (802.3af/at/bt), 450 W budget, 850 W with RPSU 5580
- Power: 1x IEC C14, 100-240 VAC, 50-60 Hz; max 515 W
- Switching capacity: 104 Gbps
- Dimensions (W x D x H): 220 x 296.4 x 43.2 mm (half 19")
- Weight: 2.4 kg
- Part number: LU0100090-10G-P500
