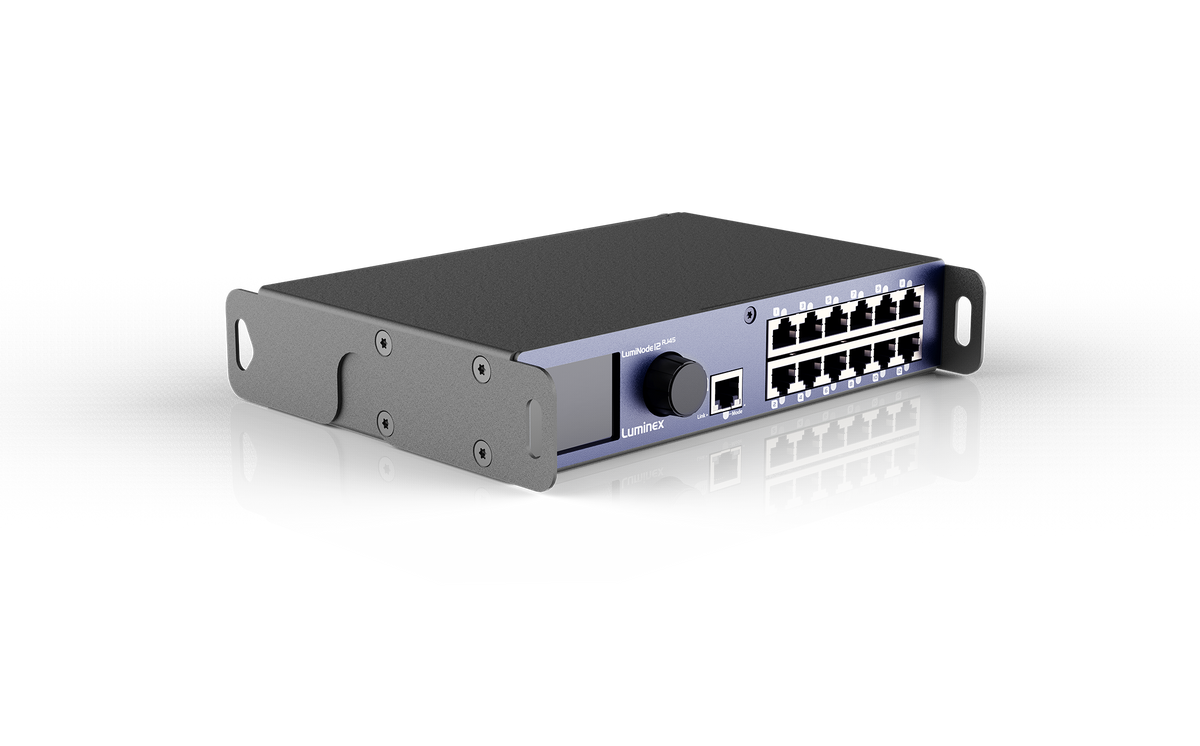

LU0100073 - Luminex LumiNode 12 RJ45 (16 Processing engines & 12 DMX ports)
Regular price
$2,961.00 USD
Sale price
Regular price
Overview
Half-width 19" Ethernet-to-DMX node with 12 RJ45 DMX/RDM ports and 16 process engines. Two units fit side by side in 1U for 24 outputs.
Best for
Theatre and studio installs with limited rack space
Highlights
- 12x RJ45-DMX/RDM ports, each configurable as input or output
- Optical and galvanic isolation per port
- 1x RJ45 with PoE (rear), 1x RJ45 (front)
- AC and PoE power inputs for redundancy
- Front-panel display and jog, contact closure
Key Specs
- Process engines: 16
- DMX/RDM: 12x RJ45-DMX
- Ethernet: 2x RJ45, 10/100/1000 Mbps
- Protocols: Art-Net 1-4, sACN, RTTrPL (BlackTraX), KiNET v1/v2
- Power: powerCON TRUE1 in/out 100-240 VAC or PoE (802.3af Class 0); max 13 W
- Dimensions (W x D x H): 220 x 175.3 x 44 mm; 1.42 kg
- Part number: LU0100073
