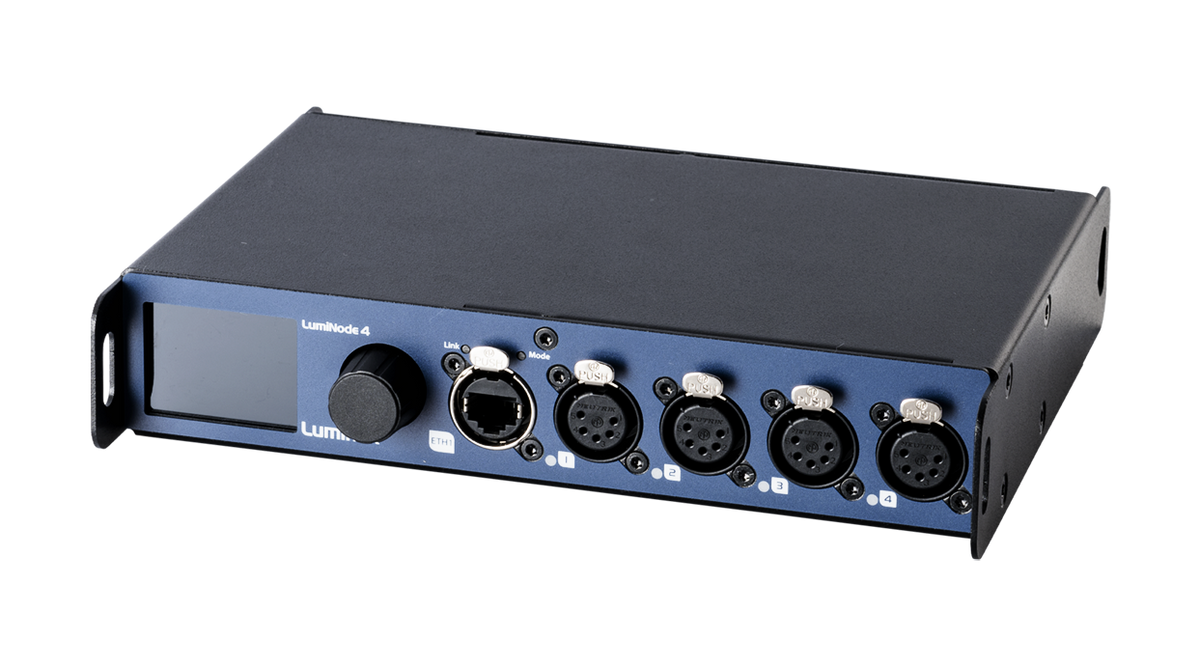

LU0100071 - Luminex LumiNode 4 (6 Processing engines & 4 DMX ports)
Regular price
$1,552.50 USD
Sale price
Regular price
Overview
Half-width 19" Ethernet-to-DMX node with 4 DMX/RDM ports and 6 process engines, powered by AC or PoE.
Best for
Touring racks, truss positions, theatre and studio DMX distribution
Highlights
- 4x 5-pin DMX/RDM ports, each configurable as input or output
- Optical and galvanic isolation per port
- 2x Gigabit etherCON ports
- AC and PoE power inputs for redundancy
- Front-panel display and jog
Key Specs
- Process engines: 6
- DMX/RDM: 4x 5-pin XLR
- Ethernet: 2x etherCON, 10/100/1000 Mbps
- Protocols: Art-Net 1-4, sACN, RTTrPL (BlackTraX), KiNET v1/v2
- Power: 100-240 VAC or PoE (802.3af Class 0); max 13 W
- Mounting: rack or truss (M10 insert)
- Dimensions (W x D x H): 220 x 175.3 x 44 mm; 1.42 kg
- Part number: LU0100071
