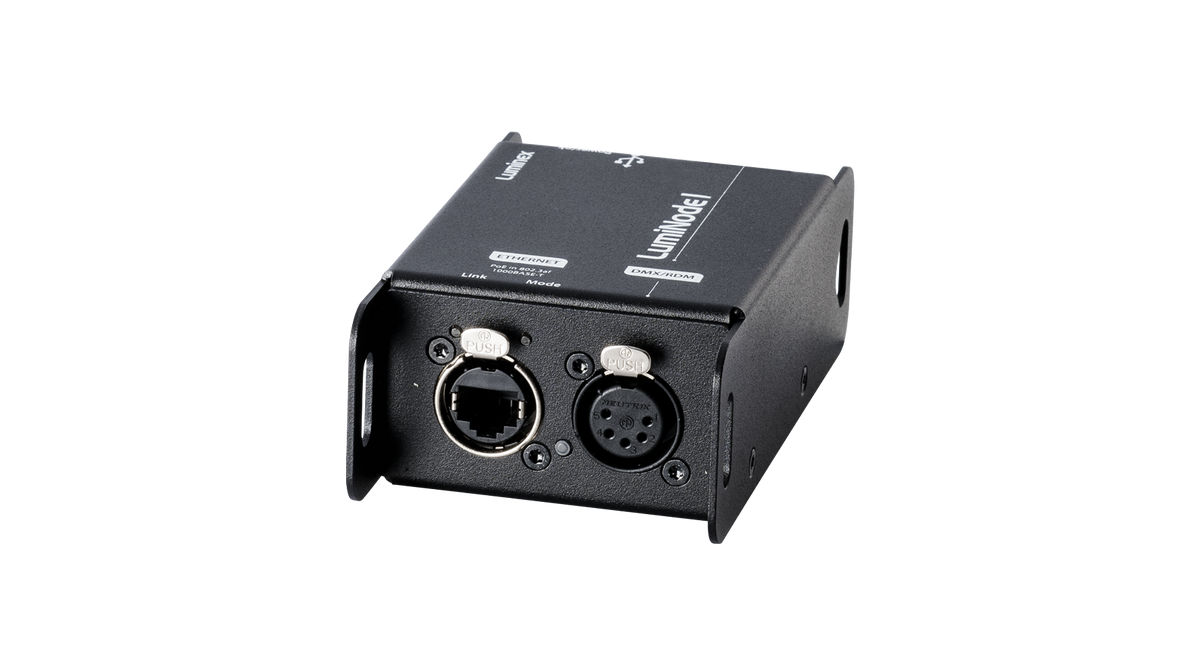

LU0100069 - Luminex LumiNode 1 (2 Processing engines & 1 DMX port)

Overview
Gigabit network node and USB dongle with 1 DMX/RDM port and 2 process engines. Works as a USB-to-Ethernet adapter for a laptop or as a standalone PoE-powered node.

Best for
Single-universe drops, laptop programming setups, PoE-powered DMX points

Highlights

• 1x 5-pin XLR DMX/RDM port, configurable as input or output
• Optically and galvanically isolated DMX port
• 2 process engines for merging and routing without a console
• USB-to-Ethernet dongle function
• Merge modes HTP, LTP, Backup, Switch, X-Fade and Custom, plus soft patch, triggers and snapshots

Key Specs

• Process engines: 2
• DMX/RDM: 1x Neutrik 5-pin XLR female
• Ethernet: 1x etherCON, 10/100/1000 Mbps
• Protocols: Art-Net 1-4, sACN, RTTrPL (BlackTraX), KiNET v1/v2
• Power: USB or PoE (802.3af Class 0); max 6 W
• Dimensions (W x D x H): 131.5 x 73.3 x 44 mm; 0.42 kg
• Part number: LU0100069
