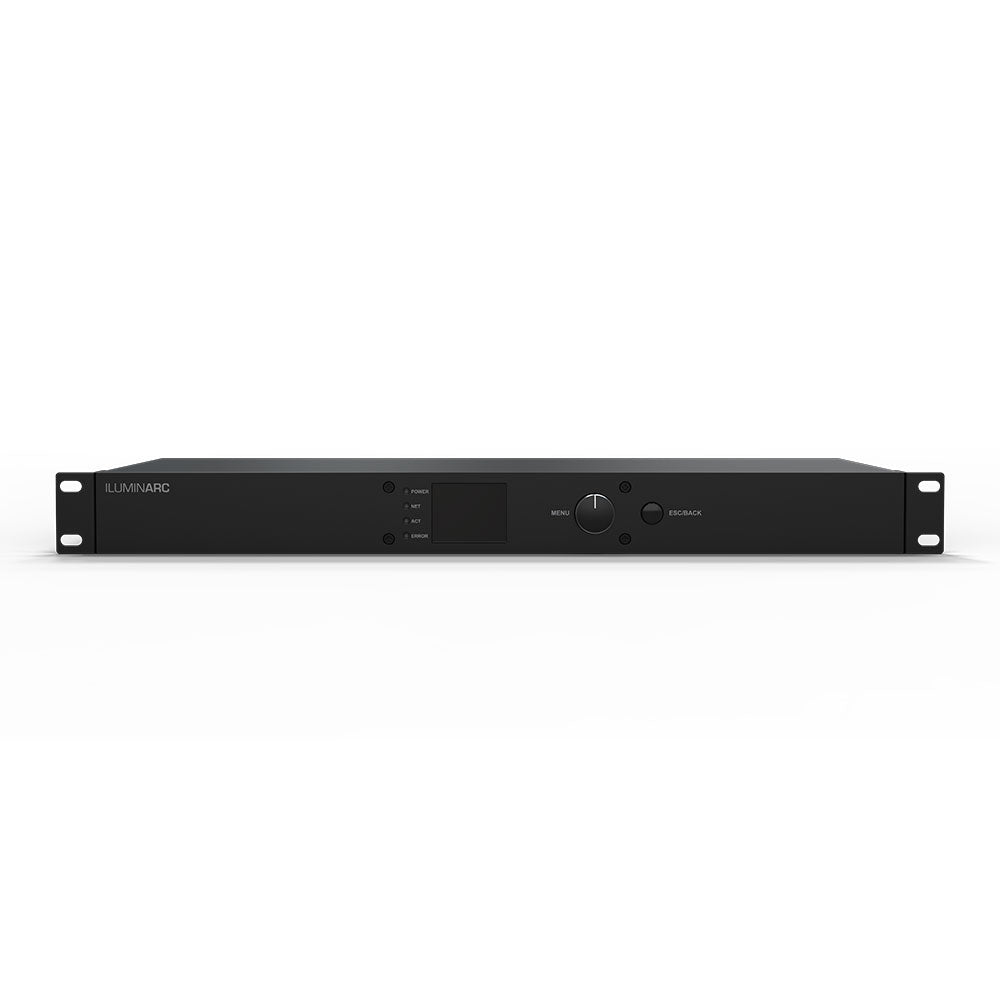

LOGIC Drive 2X

Overview
The LOGIC Drive 2X is a two-output Power over Ethernet hub that feeds power and DMX/Art-Net/sACN control data to remote LOGIC fixtures over standard Ethernet cable, using the IEEE 802.3bt POE++ standard.

Compatible with
LOGIC AR111, MR16, Cove and Graze fixtures, plus up to six LOGIC Wall Controllers for local scene recall.

Highlights

• Two POE++ outputs rated up to 92.5W each
• Integrated webserver, RDM support and hot-swap capable outputs

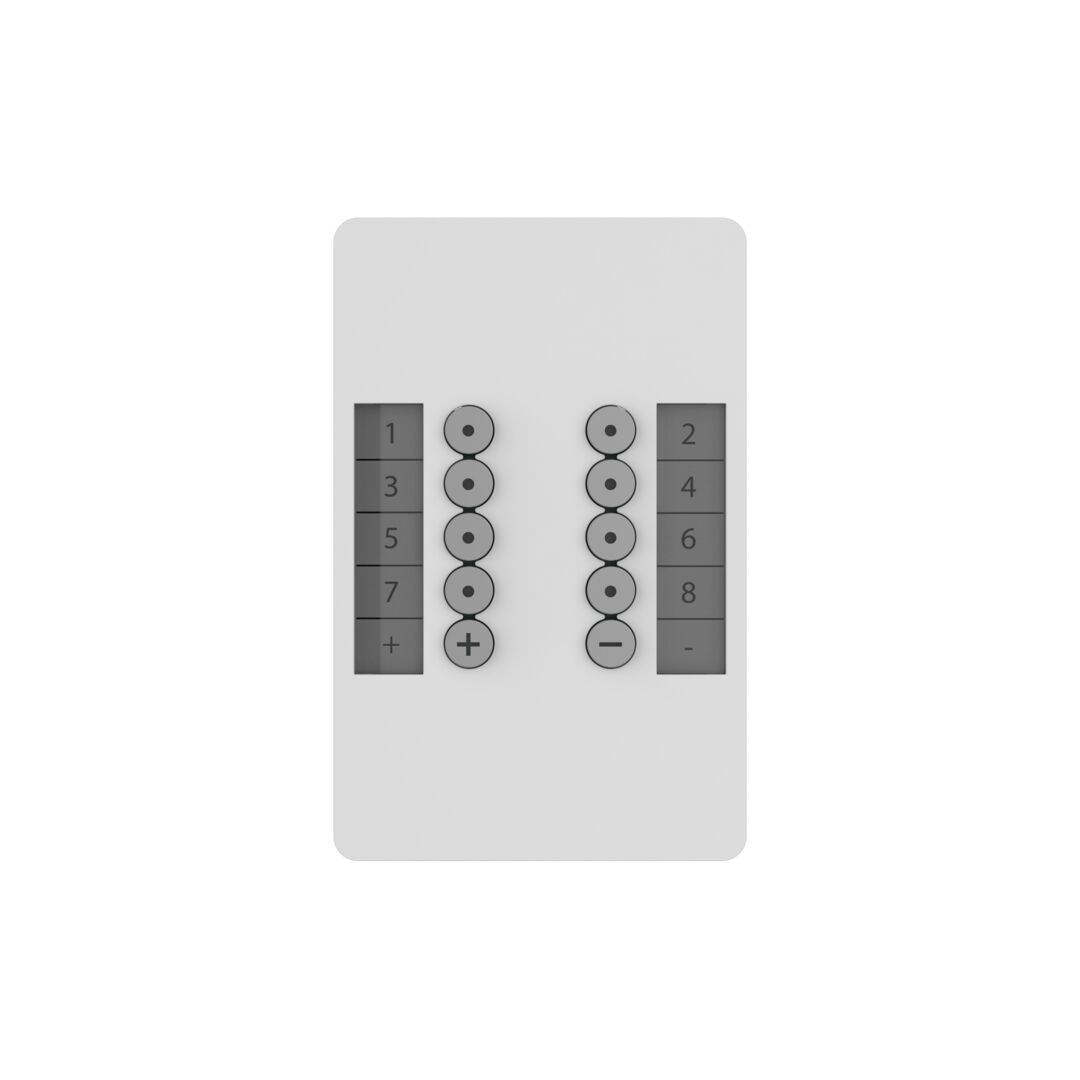

• Includes one wall controller with recall of up to 8 scenes
• Built-in occupancy sensor support

Key Specs

• Power output: 2 × 92.5W POE++ outputs
• Power input: 260W, 100–240 VAC, 50/60 Hz
• Protocols: DMX, Art-Net, sACN
• Dimensions: 10.31 × 18.86 × 1.73 in (479 × 245 × 44 mm)
• Weight: 7.6 lb (3.45 kg)
