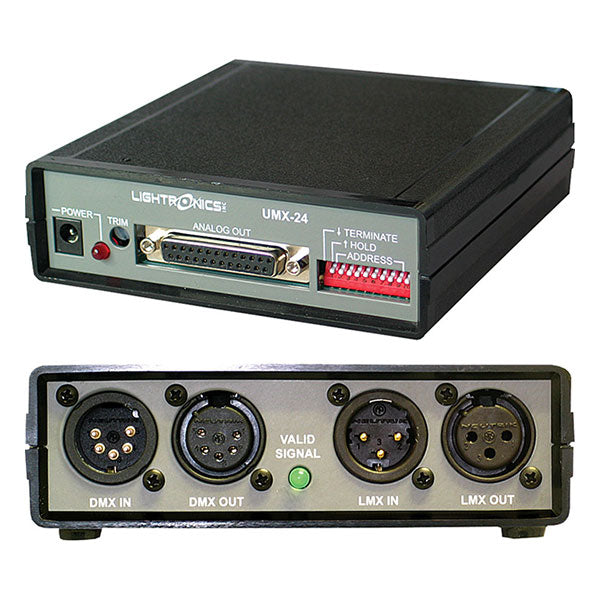

UMX24 - DMX / LMX to 0-10VDC Converter
Regular price
$412.50 USD
Sale price
Regular price
Overview
The Lightronics UMX24 is a protocol translator that converts DMX-512 or LMX-128 input into 24 channels of 0-10VDC analog output.
Best for
Theaters, churches, schools, and architectural installations connecting a DMX or LMX controller to analog dimming systems.
Highlights
- DMX-512 or LMX-128 input
- 24 analog 0-10VDC output channels
- Selectable start address
- Output hold function
- DMX and LMX pass-through connectors
- +15VDC phantom power or external power supply operation
Key Specs
- Channels: 24 analog outputs, 0-10VDC
- Input connectors: 5-pin DMX, 3-pin LMX
- Output connector: DB-25
- Dimensions: 5.25 x 5.125 x 1.75 in (133 x 130 x 44 mm)
- Weight: 1.0 lbs (0.5 kg)
- Power: Edison duplex power cord, 120V (USA)
