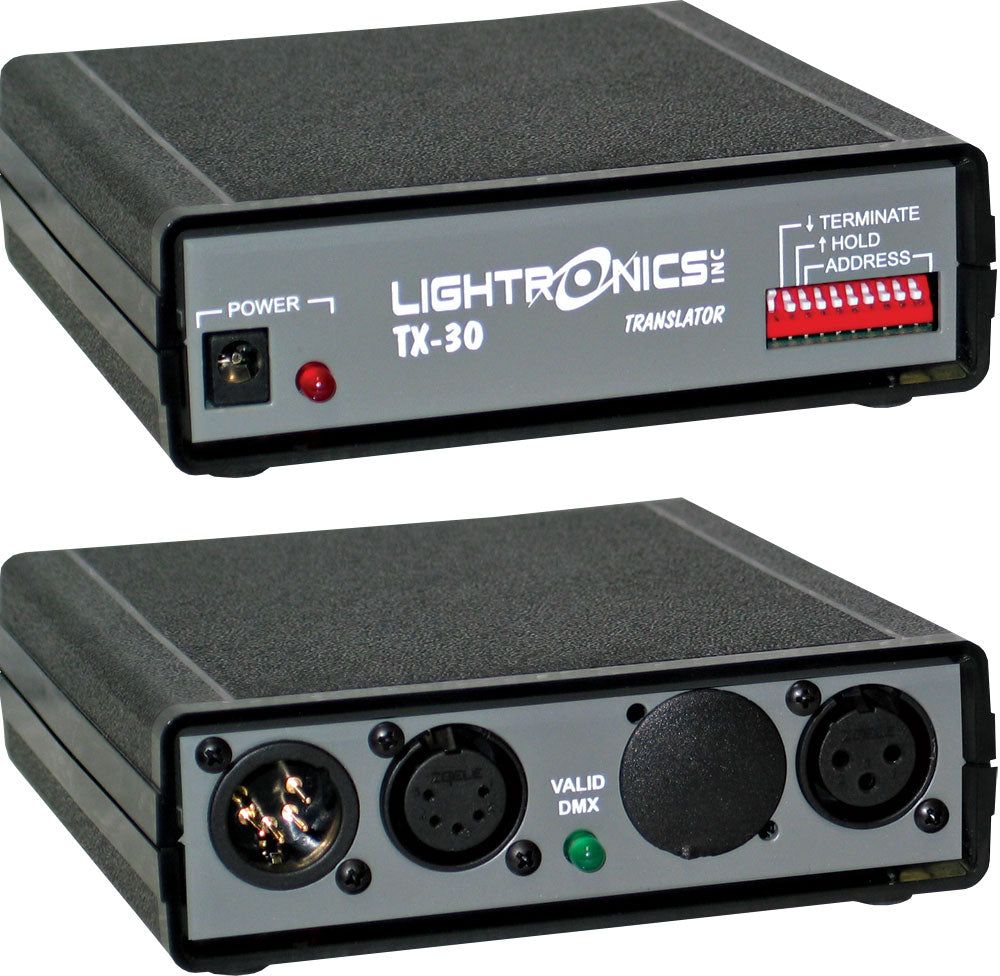

TX30 - DMX to LMX-128 Converter, Portable
Regular price
$249.75 USD
Sale price
Regular price
Overview
The Lightronics TX30 is a portable protocol translator that converts DMX-512 input into the AMX-192 multiplex protocol. It lets DMX controllers run existing AMX-192 dimmers.
Best for
Venues with legacy Lightronics AMX-192 dimmers that want to use a DMX console.
Highlights
- DMX-512 input, AMX-192 output
- Up to 192 output channels
- DIP switch selectable addressing
- DMX pass-through connector
- DMX valid and power-on indicators
- Phantom power from compatible dimmers, or optional external 12VDC
Key Specs
- Input connector: 5-pin DMX (with pass-through)
- Output connector: 4-pin male XLR (AMX-192)
- Dimensions: 5.125 x 5.25 x 1.75 in (130 x 133 x 44 mm)
- Weight: 0.9 lbs (0.4 kg)
- Power: phantom power from dimmers or external 12VDC
