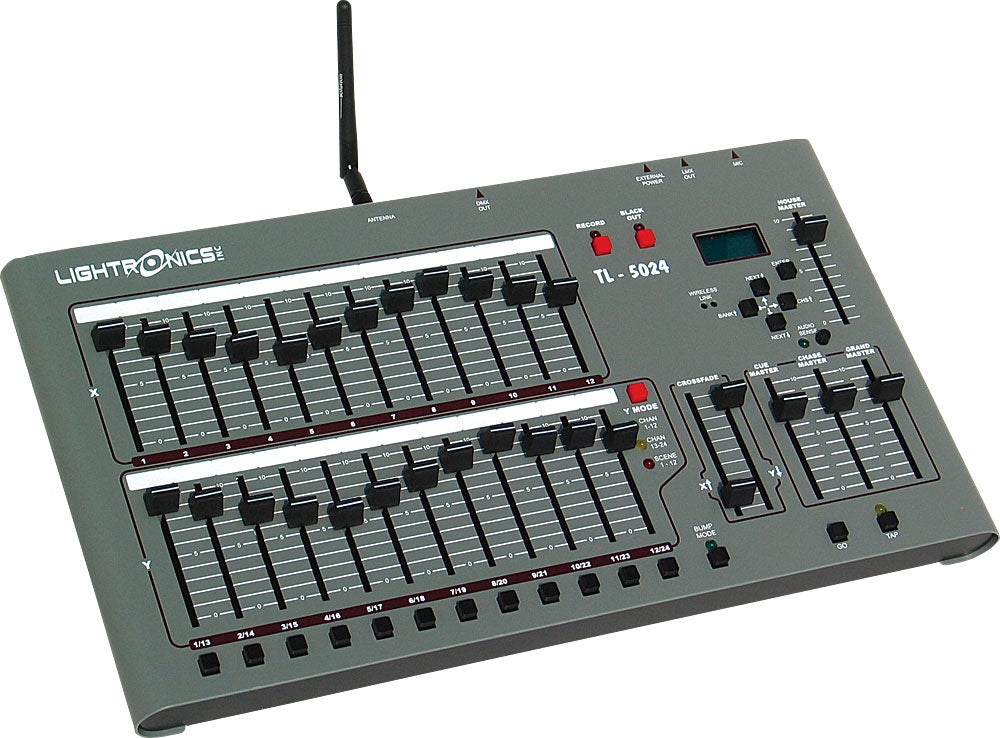

TL5024 - 24-Ch Console, 192 Scenes, 12 Chases, LCD, DMX

Overview
The Lightronics TL5024 is a compact 24-channel lighting console for conventional systems. It provides 192 scenes, 12 chases, and a two-line LCD.

Best for
Churches, schools, theaters, multipurpose rooms, and mobile productions.

Highlights

• 24 control channels with multiple operating modes
• 192 scenes across multiple banks and a 240-step cue list with adjustable fades
• 12 chases of up to 20 steps each
• Built-in softpatch with two pages
• Two-line LCD status display and dedicated GO button
• Non-volatile memory, LED fixture compatible

Key Specs

• Channels: 24
• Control protocol: DMX-512 and LMX-128 output
• Dimensions: 9.25 x 16.25 x 2.5 in (235 x 413 x 64 mm)
• Weight: 6.8 lbs (3.1 kg)
• Power: can be powered from connected dimmers

Please note: Optional features such as 3-pin DMX output and wireless DMX integration are available as factory options.
