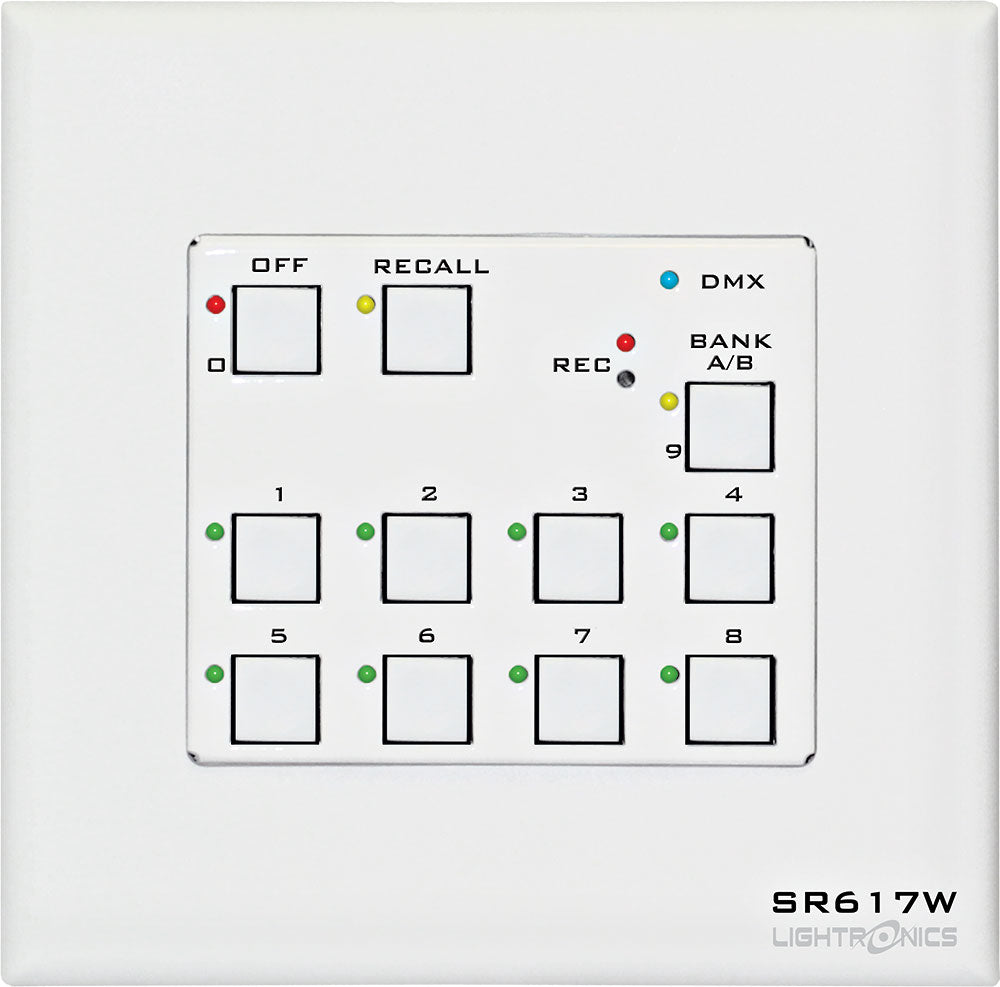

SR617W - 16-Scene DMX In/Out Playback, Button & Fader Stations, Wall Mount

Overview
The SR617W is a wall-mount DMX master remote with onboard scene storage and access to the Lightronics Unity Architectural system. It offers 16 user-defined scenes using 8 pushbuttons and 2 banks, plus simple contact switch inputs and stored Unity scenes.

Best for
Churches, schools, theaters, and conference facilities that need simple wall-mounted DMX and Unity scene playback.

Highlights

• Stores and recalls up to 16 user-defined pushbutton scenes (8 pushbuttons, 2 banks)
• Works as a standalone DMX controller with snapshot recording
• DMX input and DMX output operation
• User-defined fade times from 0 to 55 seconds
• Non-volatile scene memory
• Works with LED and conventional lighting systems
• Programmable fixed DMX output values for channel parking
• Button and fader station access

Key Specs

• Scenes: 16 (8 pushbuttons x 2 banks)
• DMX: 5-pin DMX input, DMX output
• Network: Unity Architectural (LitNet) over bidirectional RS-485
• Power: 12VDC 2A power supply
• Mounting: wall gang box (2-gang)
• Dimensions: 3.7 x 4 x 1.5 in
• Color: White
• Weight: 0.4 lbs (0.18 kg)
• UL listing: N/A

Please note: A 12VDC 2A power supply is required.
