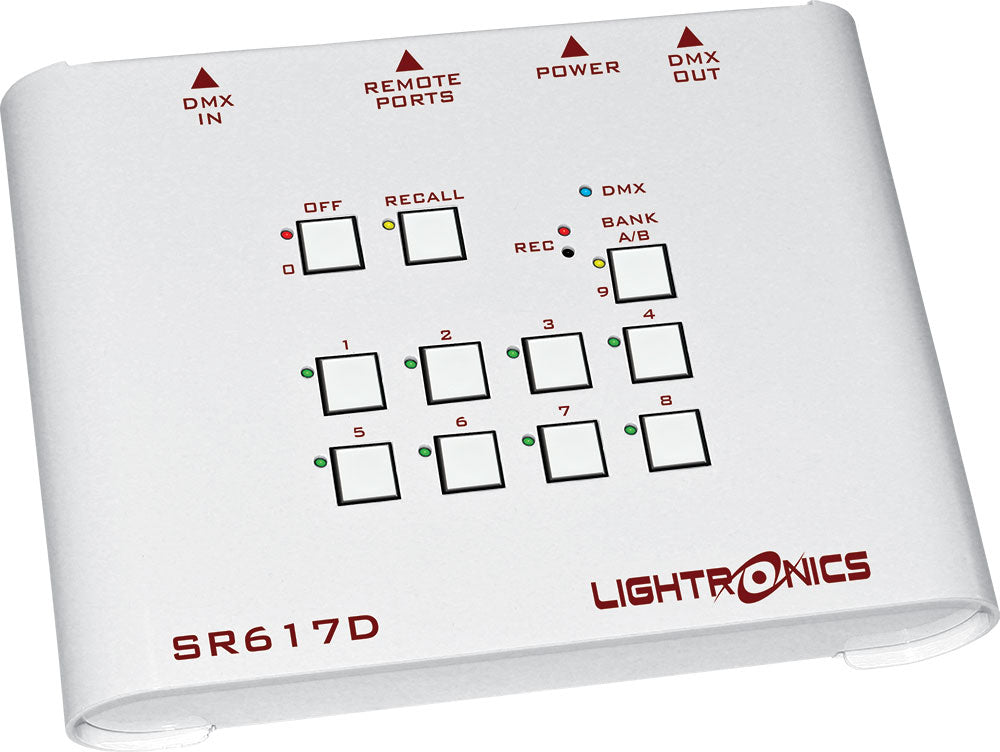

SR617D - 16-Scene DMX In/Out Playback, Button & Fader Stations, Desktop

Overview
The SR617D is the desktop version of the Lightronics SR617 DMX master remote. It offers 16 user-defined scenes using 8 pushbuttons and 2 banks, with DMX input and output and access to Unity Architectural stations.

Best for
Churches, schools, theaters, and conference facilities that want desktop scene playback.

Highlights

• Stores and recalls up to 16 user-defined pushbutton scenes (8 pushbuttons, 2 banks)
• Works as a standalone DMX controller with snapshot recording
• DMX input and DMX output operation
• User-defined fade times from 0 to 55 seconds
• Non-volatile scene memory
• Works with LED and conventional lighting systems

Key Specs

• Scenes: 16 (8 pushbuttons x 2 banks)
• DMX: 5-pin DMX input, DMX output
• Network: Unity Architectural (LitNet) over bidirectional RS-485
• Power: 12VDC 2A power supply
• Mounting: desktop / portable
• Color: White
• UL listing: N/A
• Dimensions: 7 x 5 x 2.25 in
• Weight: 1.75 lbs (0.79 kg)

Please note: A 12VDC 2A power supply is required.
