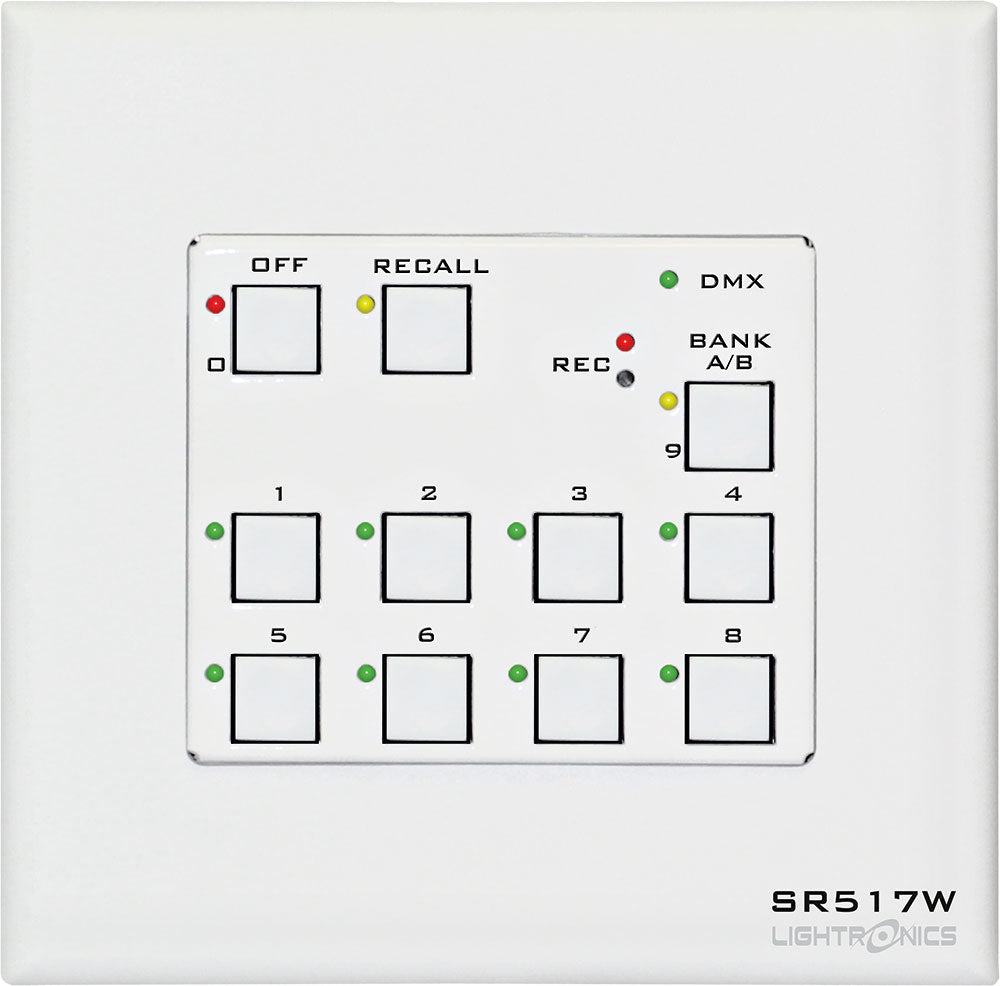

SR517W - 16-Scene DMX In/Out Playback, Button Stations Only, Wall Mount

Overview
The SR517W is a wall-mount Lightronics DMX master remote with 16 user-defined pushbutton scenes (8 pushbuttons, 2 banks). It plays back stored scenes and gives Unity Architectural access to architectural button stations.

Best for
Churches, schools, theaters, and conference facilities that need simple pushbutton scene playback.

Highlights

• Stores and recalls up to 16 user-defined pushbutton scenes (8 pushbuttons, 2 banks)
• Works as a standalone DMX controller with snapshot recording
• DMX input and DMX output operation
• User-defined fade times from 0 to 55 seconds
• Non-volatile scene memory
• Works with LED and conventional lighting systems

Key Specs

• Scenes: 16 (8 pushbuttons x 2 banks)
• DMX: 5-pin DMX input, DMX output
• Network: Unity Architectural (LitNet) over bidirectional RS-485
• Power: 12VDC 2A power supply
• Mounting: wall plate
• Color: White
• UL listing: N/A
• Dimensions: 3.7 x 4 x 1.5 in
• Weight: 0.4 lbs (0.18 kg)

Please note: A 12VDC 2A power supply is required. Contact us to confirm gang size.
