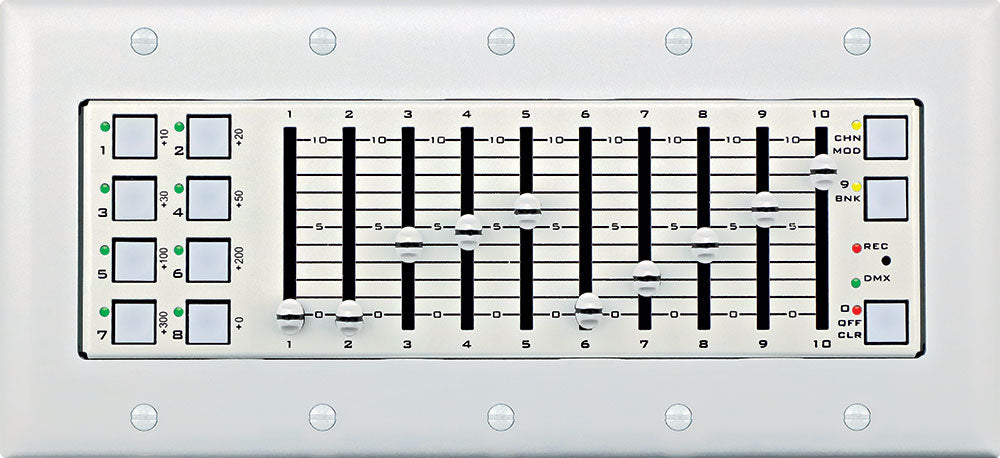

SC910W - 18-Scene DMX In/Out Merge Controller, 8 Buttons / 10 Faders, Wall Mount

Overview
The SC910W is the wall-mount version of the Lightronics DMX master programmable controller. It provides standalone DMX control with 18 user-defined scenes on eight pushbuttons and ten faders.

Best for
Installations that need standalone DMX control and programmability, such as houses of worship, schools, and multi-purpose rooms.

Highlights

• Controls a full 512-channel DMX universe
• Stores and recalls up to 18 user-defined scenes with DMX snapshot recording
• 8 pushbuttons and 10 faders for scene control
• User-defined fade times from 0 to 55 seconds
• Non-volatile scene memory
• Works with LED and conventional lighting systems
• Can also store and play scenes for the Lightronics Unity Architectural system

Key Specs

• Scenes: 18 user-defined
• Controls: 8 pushbuttons, 10 faders
• DMX: 5-pin DMX input and output, 512 channels
• Network: Unity Architectural (LitNet) over bidirectional RS-485
• Power: 12VDC 2A power supply
• Mounting: wall gang box (5-gang)
• Dimensions: 9.125 x 4 x 1.75 in
• Color: White
• Weight: 0.95 lbs (0.43 kg)
• UL listing: N/A

Please note: A 12VDC 2A power supply is required. Contact us to confirm the correct supply or enclosure.
