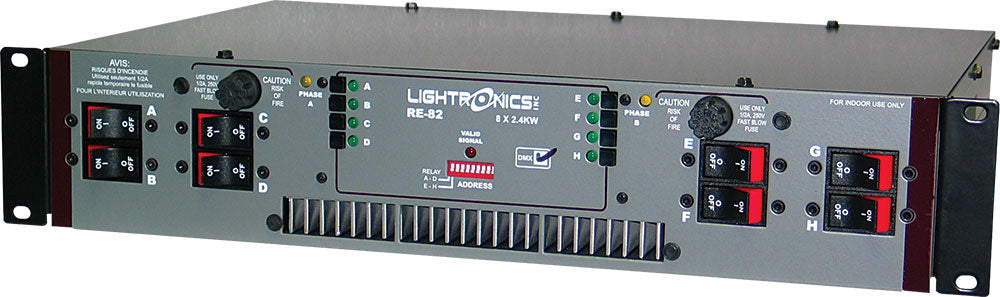

RE82D - 8-Ch 2400W Rack Mount Dimmer, DMX, Breakers, UL-508

Overview
The RE82D is a 8-channel rack mount dimming system rated 2,400W per channel (19,200W total) with forward phase dimming and non-dim (relay type) capability. It is an economy level model for permanent installations.

Best for
Permanent installations in theaters, churches, schools and venues needing a rack mount dimmer.

Highlights

• 8 channels at 2,400W each
• DMX-512 (5-pin XLR) control
• Forward phase dimming with relay mode for non-dim loads
• Local on/off and DIP switch addressing
• Output panel versions (duplex, terminal strip, stage pin, Powerlock, Socapex) are factory configurations

Key Specs

• Channels: 8
• Load: 2,400W per channel (19,200W total)
• Control: DMX-512 (5-pin XLR)
• Output connectors: Edison duplex outlets
• Line voltage: 120/240V single phase (120VAC output)
• Protection: Fast acting circuit breakers, 20A
• Dimensions: 19 x 13 x 3.5 in
• Weight: 27 lbs (12.2 kg)
• UL: UL-508 compliant, UL Listed

Please note: Rack dimmers are hardwired to the line supply. This unit is hardwired. Installation should be done by a licensed electrician.
