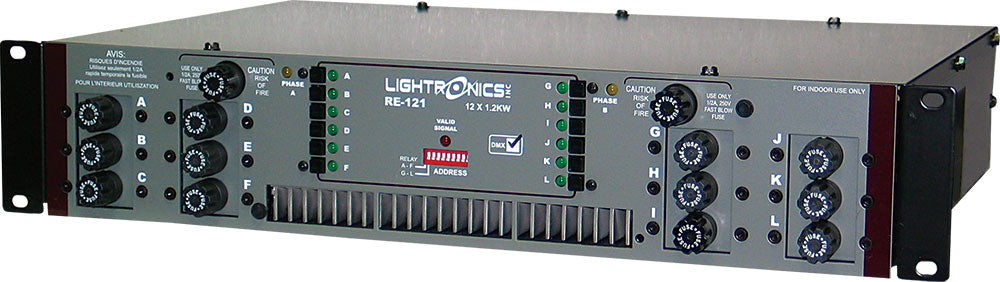

RE121D - 12-Ch 1200W Rack Mount Dimmer, DMX, Fused, UL-508
Regular price
$1,162.50 USD
Sale price
Regular price
Overview
The RE121D is a 12-channel rack mount dimming system rated 1,200W per channel (14,400W total) with forward phase dimming and non-dim (relay type) capability. It is an economy level model for permanent installations.
Best for
Permanent installations in theaters, churches, schools and venues needing a rack mount dimmer.
Highlights
- 12 channels at 1,200W each
- DMX-512 (5-pin XLR) control
- Forward phase dimming with relay mode for non-dim loads
- Local on/off and DIP switch addressing
- Output panel versions (duplex, terminal strip, stage pin, Powerlock, Socapex) are factory configurations
Key Specs
- Channels: 12
- Load: 1,200W per channel (14,400W total)
- Control: DMX-512 (5-pin XLR)
- Output connectors: Edison duplex outlets
- Line voltage: 120/240V single phase (120VAC output)
- Protection: Fused or 10A fast acting circuit breakers
- Dimensions: 19 x 13 x 3.5 in
- Weight: 27 lbs (12.2 kg)
- UL: UL-508 compliant, UL Listed
Please note: Rack dimmers are hardwired to the line supply. This unit is hardwired. Installation should be done by a licensed electrician.
