RD82 - 8-Ch 2400W Rack Mount Dimmer, DMX & LMX, Breakers, UL-508
Regular price
$1,612.50 USD
Sale price
Regular price
Overview

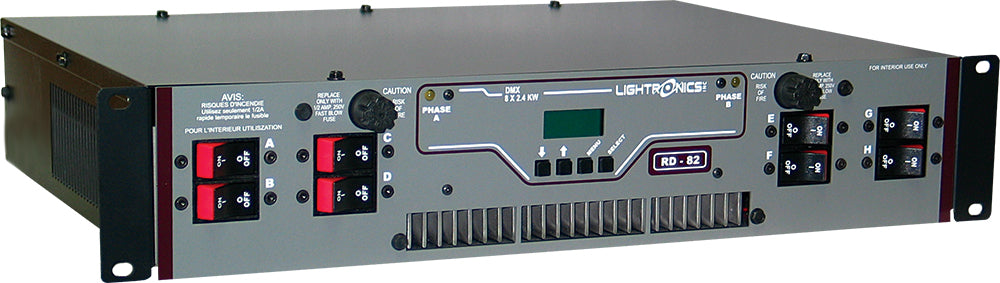

The RD82 is a 8-channel rack mount dimming system rated 2,400W per channel (19,200W total) with forward phase dimming and non-dim (relay type) capability.
Best for
Permanent installations in theaters, churches, schools and venues needing a rack mount dimmer.
Highlights
- 8 channels at 2,400W each
- DMX-512 control (LMX per title)
- Forward phase dimming or relay-type non-dim
- Edison duplex outputs
- Output connector versions available as factory options
Key Specs
- Channels: 8
- Load: 2,400W per channel (19,200W total)
- Control: DMX-512 and LMX
- Output connectors: Edison duplex outlets
- Line voltage: 120/240V single phase (120VAC output)
- Protection: Breakers
- Dimensions: 19 x 13 x 3.5 in
- Weight: 27 lbs (12.2 kg)
- UL: UL-508 compliant, UL Listed
Please note: Rack dimmers are hardwired to the line supply. This unit is hardwired. Installation should be done by a licensed electrician.
