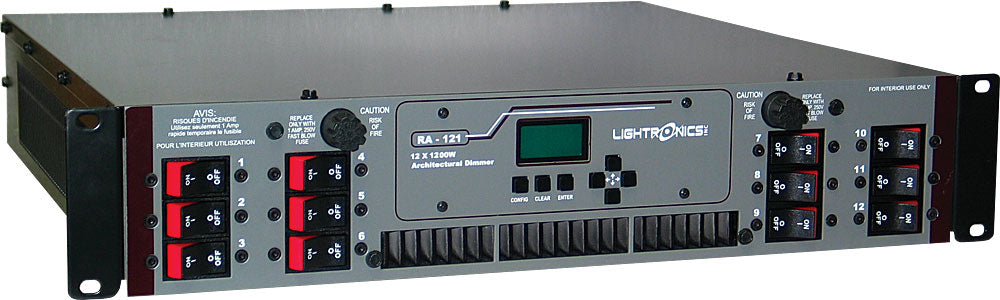

RA121 - 12-Ch 1200W Rack Mount Architectural Dimmer, 99 Scenes, UL-508
Regular price
$1,875.00 USD
Sale price
Regular price
Overview
The RA121 is a 12-channel rack mount dimming system rated 1,200W per channel (14,400W total) with forward phase dimming and non-dim (relay type) capability. It is an architectural model with Unity Architectural Lighting Control support.
Best for
Permanent installations in theaters, churches, schools and venues needing a rack mount dimmer.
Highlights
- 12 channels at 1,200W each
- Forward phase dimming or relay-type non-dim per channel
- Unity Architectural and DMX-512 control
- 99 scenes per the product title
- Edison duplex output connections
Key Specs
- Channels: 12
- Load: 1,200W per channel (14,400W total)
- Control: DMX-512 and Unity Architectural (LitNet)
- Output connectors: Edison duplex outlets
- Line voltage: 120/208V three phase or 120/240V single phase
- Protection: Circuit breakers
- Dimensions: 19 x 16 x 3.5 in
- Weight: 40 lbs (18.1 kg)
- UL: UL-508 compliant
Please note: Rack dimmers are hardwired to the line supply. This unit is hardwired. Installation should be done by a licensed electrician.
