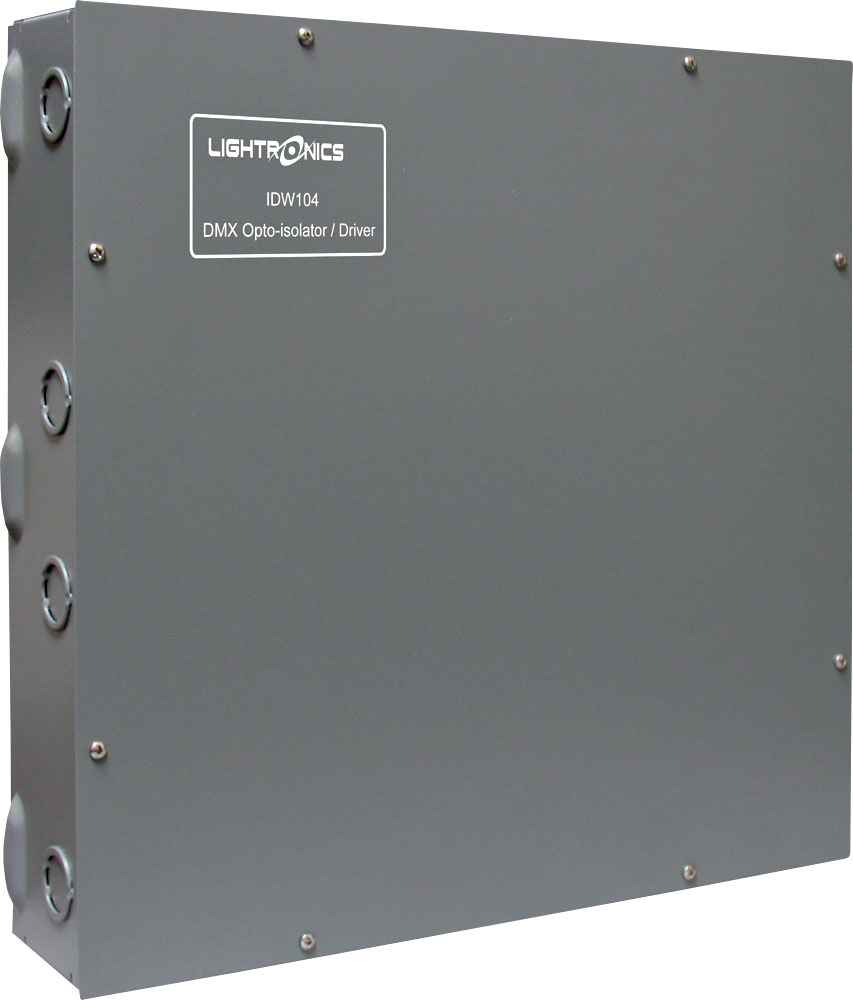

IDW104 - Wall Mount DMX Opto-Isolator, 1 Universe In / 4 Out
Regular price
$525.00 USD
Sale price
Regular price
Overview
The Lightronics IDW104 is a wall-mount DMX-512 opto-isolated splitter. It distributes one DMX universe to four independent optically isolated outputs.
Best for
Permanent installations in theaters, churches, and schools.
Highlights
- One DMX-512 universe in, four optically isolated outputs
- Removable 3-position screw terminal connections
- Power and DMX signal LED indicators
- 12VDC external power supply included
- Wall-mount steel enclosure
- Multiple conduit knockouts
Key Specs
- Input: 1 DMX-512 universe, screw terminal
- Outputs: 4 isolated, screw terminal
- Power: 12VDC supply included (accepts 12-16VDC at 800mA or greater)
- Dimensions: 15 x 3.25 x 15 in (381 x 83 x 381 mm)
- Weight: 12.0 lbs (5.4 kg)
