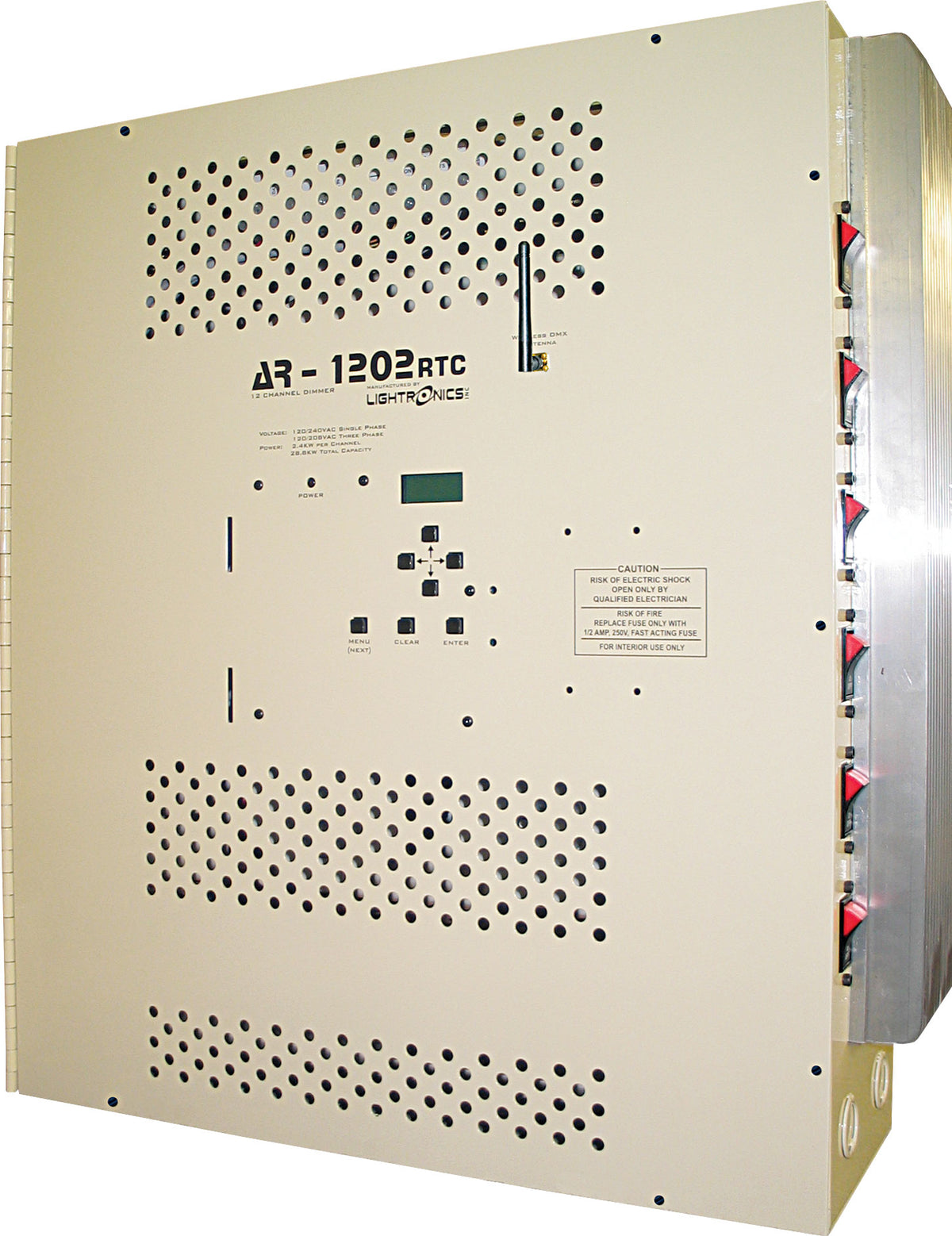

AR1202 - 12-Ch 2400W Wall Mount Architectural Dimmer, 99 Scenes, UL-508
Regular price
$3,225.00 USD
Sale price
Regular price
Overview
The AR1202 is a 12-channel DMX-512 architectural wall mount dimmer rated 2,400W per channel (28,800W total). It is Lightronics Unity Architectural Lighting Control (LitNet) enabled and supports one-button scene control with up to 99 scenes.
Best for
Churches, schools, theaters, hotels and other venues needing permanent architectural dimming.
Highlights
- 12 channels of forward phase AC dimming or non-dim switching
- Unity Architectural (LitNet) enabled with RS-485 remote station integration
- DMX-512 input
- 99 scenes, one-button control
- Can be expanded with Lightronics expander modules using its auxiliary channels
Key Specs
- Channels: 12
- Load: 2,400W per channel (28,800W total)
- Control type: A/C dimming and A/C non-dimming (forward phase)
- Control: DMX-512, RS-485 remote stations
- Line voltage: 120/208V three phase or 120/240V single phase (USA)
- Output: 120V
- Dimensions: 20.5 x 21 x 6.25 in
- Weight: 70 lbs (31.8 kg)
- UL: UL-508 compliant, UL Listed
Please note: This unit is hardwired. Installation should be done by a licensed electrician.
