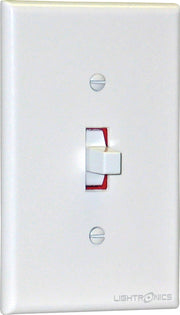

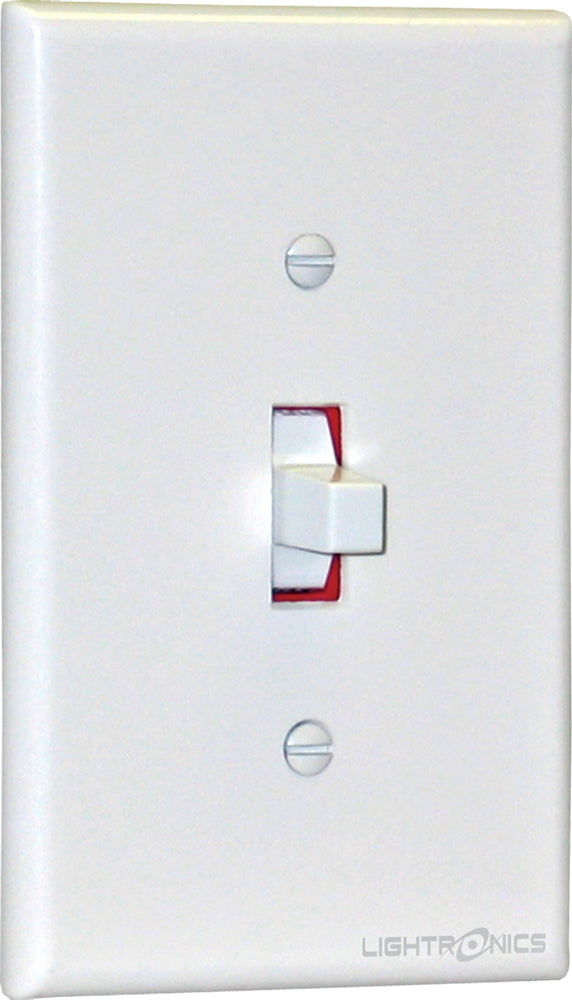

APP01W - Simple Remote, 2-Position Momentary Switch, 1-Gang, White

Overview
The APP01W is a simple two-scene remote with a two-position momentary switch for Lightronics Unity Architectural lighting control. It recalls scenes stored in the host dimmer and does not switch loads directly.

Best for
Churches, schools, corporate spaces, stages, and event venues that want a basic wall switch for two scenes.

Highlights

• Two-position momentary switch with blackout option
• Low-voltage wiring, no external power needed
• Recalls two scenes stored in the Unity system
• Several units can be wired in parallel or assigned different scene pairs
• Fits a standard single-gang box

Key Specs

• Scenes: 2 plus blackout
• Control protocol: Unity Architectural (LitNet) over bidirectional RS-485
• Power: hardwired low voltage
• Mounting: wall gang box (1-gang)
• Dimensions: 4 x 1.25 x 1.125 in
• Color: White
• Weight: 0.25 lbs (0.11 kg)
• UL listing: N/A

Please note: This station does not switch loads itself. It needs a Unity Architectural enabled Lightronics dimmer or ballast controller on the RS-485 bus to store and play the scenes.
